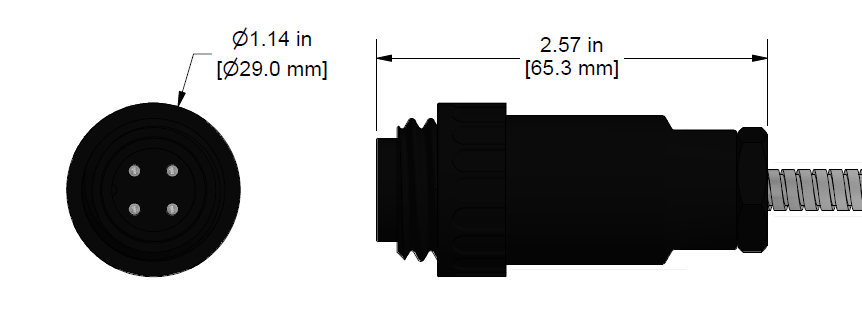

C341 Series
4 Pin Plug for Sensodec Systems
Product Features
Connects to Sensodec Systems (often integrated into Valmet DNA Machine Monitoring)
| Specifications | |
|---|---|
| Max Temperature | +100 °C (212 °F) |
| Temperature Range | -40 °C to 100 °C (-40 °F to 212 °F) |
| Connector Type | 4 Pin |
| Shell Material | Plastic |
| Pin Contact Material | Silver Plated Pins |
| Connector Insert Material | Plastic |
| Rating | IP65 |
| Pin-Out | Pin 1 Signal (+) Pin 2 Common (-) |
