C611 Series

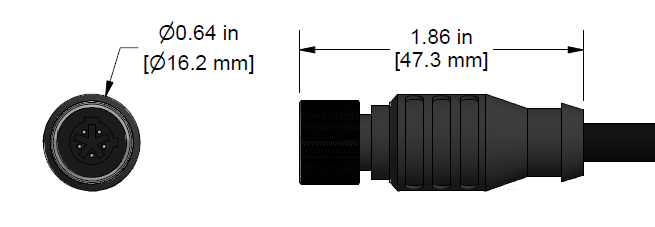

Emerson 2140 & 2130 Compatible, 5 Socket M12 Circular Connector, Mates with Emerson/CSI Triaxial Sensor (XYZ)
Product Features
- 5 Pin Turck Dual Key Connector
- Compatible Connectors: C560, C561, C562, C614, F3C
| Specifications | |
|---|---|
| Application | Portable Monitoring |
| Temperature Range | -40 °C to 105 °C |
| Connector Type | 5 Pin Turck Dual Key |
| Rating | IP69K |
| Pin-Out | 1 = Shield/Drain 2 = X Axis Power/Signal 3 = Y Axis Power/Signal 4 = Z Axis Power/Signal 5 = Common (-) |
