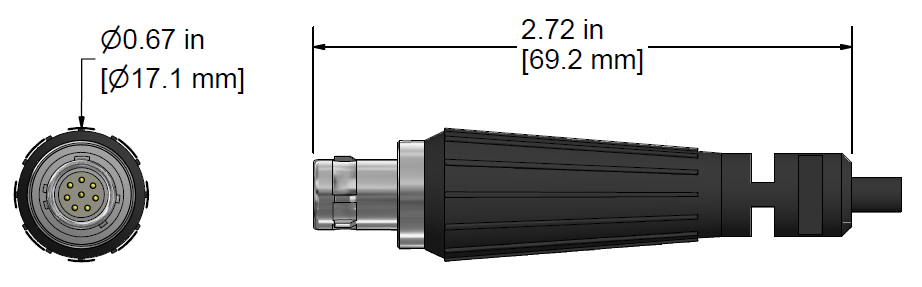

C643 Series
VIBSCANNER 2 and VIBXPERT 3 Compatible, 8 Pin Connector for Single Channel Input, Pin 1 Signal/Power, Pin 7 Jumped to Pin 8 with 2.7k Ohm Resistor
Product Features
8 Pin Connector for Single Channel Input
Pruftechnik VIBSCANNER 2 & VIBXPERT 3 Compatible
- Configure with C622 for use Current Line Drive Sensors
- Configure with K2C for use with Standard, 2 Pin MIL Sensors
| Specifications | |
|---|---|
| Application | Portable Monitoring |
| Max Temperature | 257 °F (125 °C) |
| Connector Type | 8 Pin |
| Strain Relief | Polyurethane Molded |
| Connector Insert Material | PEEK |
| Rating | IP66 |
| Pin-Out | Pin 1 Signal/Power Pin 7 Jumped to Pin 8 with 2.7k Ohm Resistor |
