C650 Series

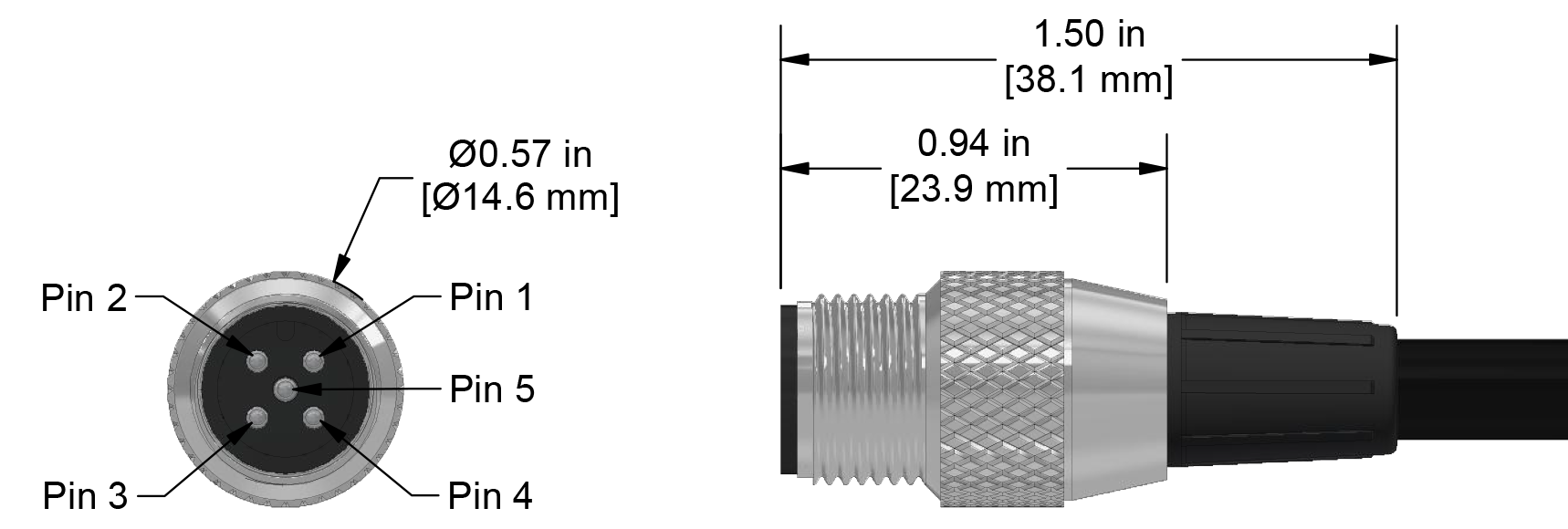

5 Pin M12 Connector with 4 Live Pins and Pin 5 as Shield/Drain for Extension Cable, Mates with M5E Connector
Product Features
- 5 Pin M12 Connector for Extension Cable
- Mates with M5E
| Specifications | |
|---|---|
| Application | Permanent Measurements |
| Connector Type | 5 Pin M12 |
| Connector Insert Material | Polycarbonate |
| Rating | IP66 Rated |
| Pin-Out | Pin 1 = (+) , Red Conductor Pin 2 = (+), Green Conductor Pin 3 = (+), White Conductor Pin 4 = (+), Black Conductor Pin 5: (-) Shield Drain |
