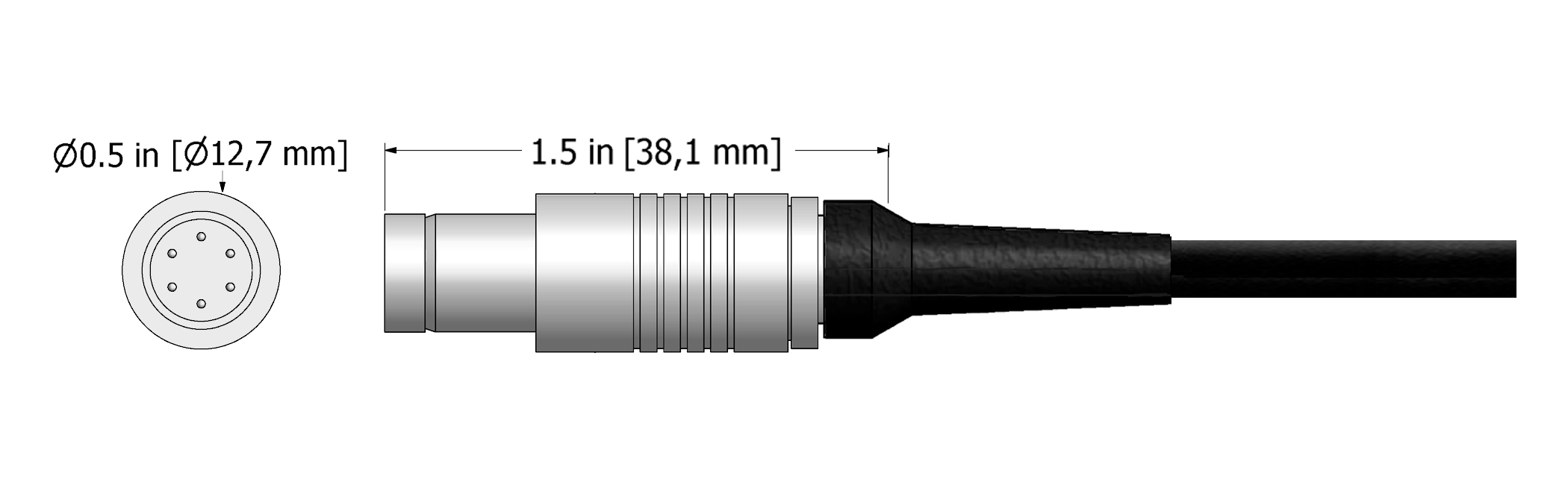

C690 Series
SKF CMXA Series, SKF dBx CMVA 90 Compatible 6 Pin Fischer Connector, Dual Output Vibration and Temperature, Pin 1 Vibration (+), Pin 4 Temperature (+), Pin 5 Common (-)
Product Features
- 6 Pin Fischer Connector for Vibration and Temperature Input
- Case Grounded
| Specifications | |
|---|---|
| Application | Portable Monitoring |
| Max Temperature | 248 °F (120 °C) |
| Connector Type | 6 Pin Fischer® connector |
| Strain Relief | Heat Shrink |
| Connector Insert Material | PEEK |
| Rating | IP66 Rated |
| Pin-Out | 1 = Vibration (+) 4 = Temperature (+) 5 = Common (-) |
