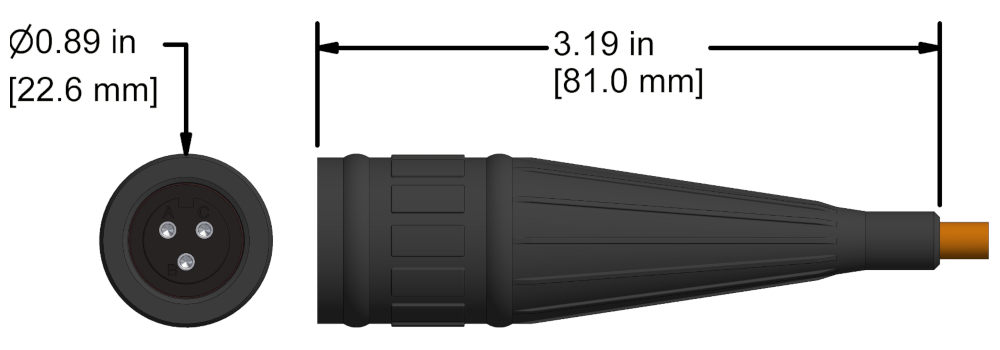

CK-V3A Series
3 Socket MIL-Style Seal-Tight Viton™ Boot Connector Kit with Polycarbonate Insert, Permanent Mount, 250 °F (121 °C) Max Temp
Product Features
- Ideal for Wet Environments
- Epoxy Kit (MH109-3D) and Crimp Tool (CB926-1A) Sold Separately
| Specifications | |
|---|---|
| Application | Permanent Mount |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | 3 Socket MIL-Style Viton™ Seal-Tight Boot |
| Shell Material | Viton™ |
| Connector Insert Material | Polycarbonate |
| Rating | IP69 |
| Pin-Out | A = Signal (+) B = Common (-) C = Signal (+) |
