E4X Series
4 Channel BNC Jack Connector, Epoxy Backfilled with Polycarbonate Backshell, 250 °F (121 °C) Max Temp
Product Features

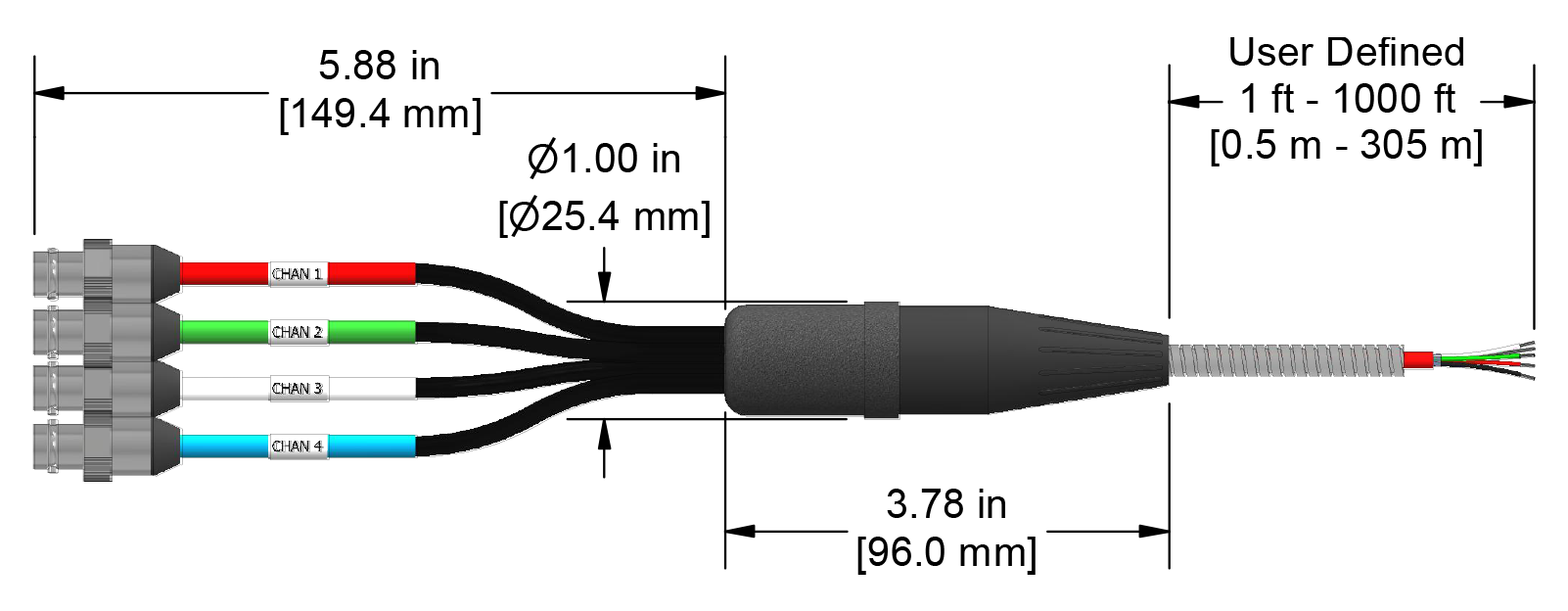

4 BNC Jacks to 1 Multi-Conductor Cable
For use with Armored Cables
- Labelled CHAN 1 (Red), CHAN 2 (Green), CHAN 3 (White), CHAN 4 (Blue)
- 250° F Max Temp
| Specifications | |
|---|---|
| Application | Permanent Mount |
| Max Temperature | 250° F (121° C) |
| Connector Type | BNC Jack |
| Shell Material | Brass Shell |
| Connector Insert Material | Beryllium Copper |
| Rating | IP66 |
| Pin-Out | Pin = Signal (+) Case = Common (-) |
