F4DG Series

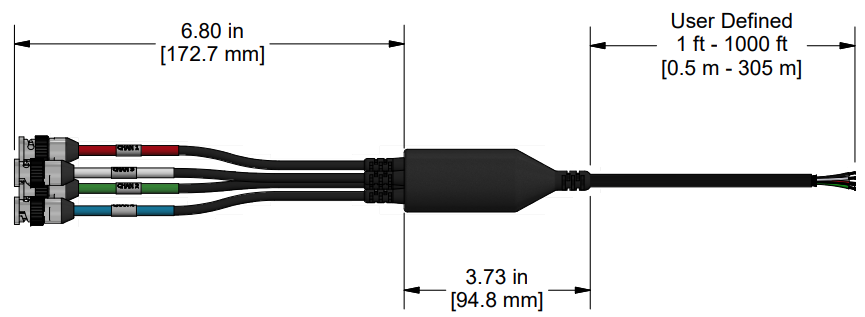

Custom Isolated 3 Channel BNC Plug Connector with Additional BNC Plug Tied from the Case to the Shield Drain Wire, Polyurethane Molded, 250 °F (121 °C) Max Temp
Product Features
4 BNC Plugs to 1 Multi-Conductor Cable
Channels Y, X, and Z are isolated with an additional 4th BNC tied from the case to the shield drain wire
- Labeled Y (Red), X (Green), Z (White)
- 250 °F (121 °C) Max Temp
- IP66 Rated
| Specifications | |
|---|---|
| Application | Portable and Permanent Measurements |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | BNC Plugs |
| Strain Relief | Polyurethane |
| Shell Material | Brass Shell |
| Connector Insert Material | Beryllium Copper |
| Rating | IP66 |
| Pin-Out | Pin = Signal (+) Case = Common (-) |
