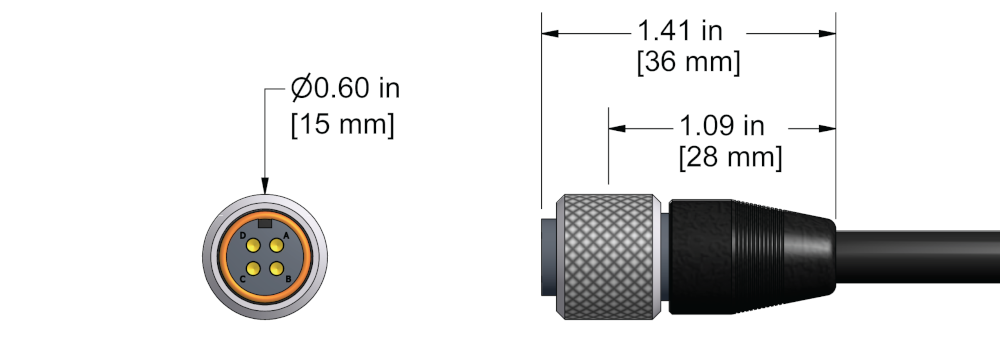

J4NX Series
4 Socket Mini-MIL, Epoxy Filled Nylon Molded Connector for Use with CB618, Permanent Mount, for CTC 4 Pin Triaxial Accelerometers, 250 °F (121 °C) Max Temp
Product Features
Compatible with CB618 Heavy Duty Armor Jacketed 4 Conductor Cable
- 4 Socket Mini-MIL Connection for use with CTC Triaxial Sensors
- Designed to Withstand a Wide Variety of Industrial Applications
- 316L Stainless Steel Locking Ring for Added Durability and Corrosion Resistance
| Specifications | |
|---|---|
| Application | Permanent Mount |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | 4 Socket Mini-MIL |
| Shell Material | Nylon |
| Connector Insert Material | Nylon |
| Rating | IP68 |
| Pin-Out | Socket A = Ch. Y (+), Red Conductor Socket B = Ch. X (+), Green Conductor Socket C = Ch. Z (+), White Conductor Socket D = Common (-), Black Conductor |
