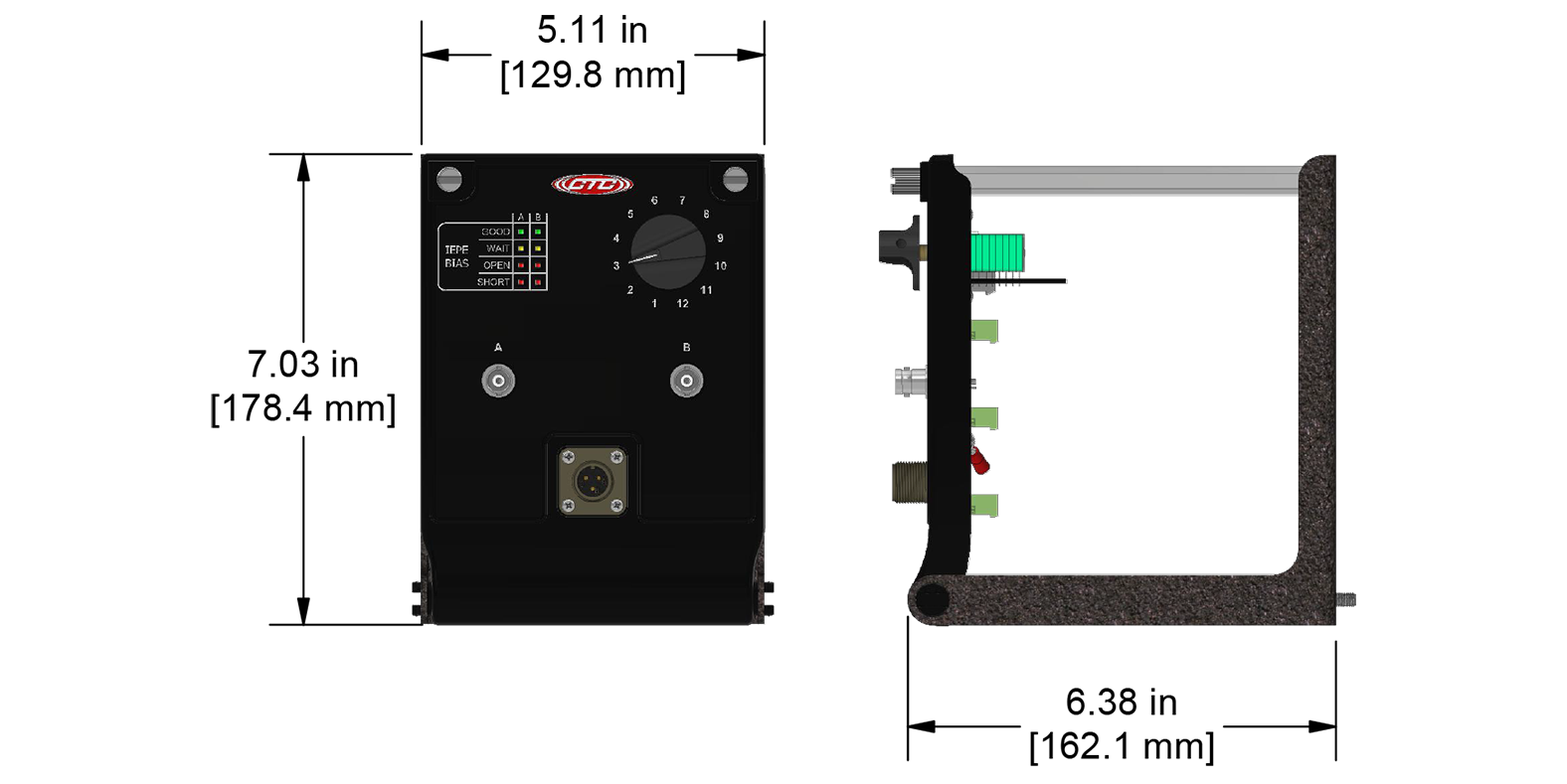

JB962-2A
Dual Input and Output iBox Panel, 12 Sensor Inputs, For Use With Extended Capacity Enclosures
Product Features
Fully featured vibration junction box interface with IEPE sensor condition indicator lights
Designed for use with extended capacity 24-48 channel enclosures
- IEPE bias indicator light identifies when data is to be collected or shows open and short circuit conditions
- Fold-forward panel for easy wiring and hidden cabling
- Includes all mounting hardware
| Specifications | |
|---|---|
| Temperature Range | -58 to 180 °F (-50 to 82 °C) |
| Inputs | A, B, C, Shield |
| Sensor Input Options | 12, 24, 36, 48 |
| Switch | A, B, C, Shield |
| Bias Indicator | 1 Channel (A-Signal, B-Common) |
