LP283-M12A Series
Dual Output Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity and RTD Temperature Output, Side Exit 4 Pin M12 Connector
Product Features
Dual Output with 4-20 mA Current Proportional to Vibration in Velocity and PT100 Sensor for RTD Temperature Output
View 2 Wire vs. 4 Wire RTD Systems Explained
- Compatible with CTC M4TR4 (Polycarbonate), M4RTR4 (PPS) and MV4R4 (Viton Boot) Connectors for 4 Wire RTD Systems
- Compatible with CTC M4TR2 (Polycarbonate), M4RTR2 (PPS), and MV4R2 (Viton Boot) Connectors for 2 Wire RTD Systems
LP283-M12A
4 Pin Connector
| Connector Pin | Polarity |
| 1 | (+) Loop Power |
| 2 | (-) Loop Power Return |
| 3 | (+) RTD |
| 4 | (-) RTD |
Built To Order
| Specifications | Standard | Metric | |
|---|---|---|---|
| Physical | |||
| Sensing Element | PZT Ceramic | ||
| Sensing Structure | Shear Mode | ||
| Weight | 4.7 oz | 132 grams | |
| Case Material | 316L Stainless Steel | ||
| Mounting Thread | 1/4-28 | ||
| Connector (Non-Integral) | 4 Pin M12 | ||
| Mounting Torque | 2 to 5 ft. lbs. | 2,7 to 6,8 Nm | |
| Mounting Hardware Supplied | 1/4-28 Captive Bolt | M6x1 Captive Bolt | |
| Calibration Certificate | Current Output @ 100 Hz |

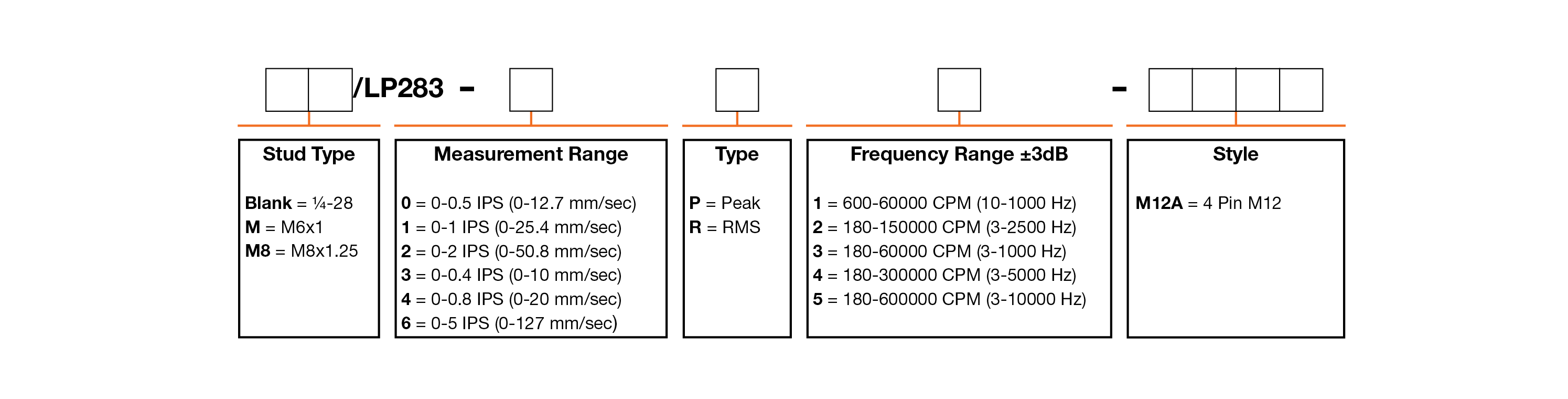

Ordering Information
