LP402 Series
Dual Vibration Output Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Dynamic IEPE Acceleration Output, Top Exit 3 Pin Connector
Product Features
Offers Continuous Protection Plus Dynamic Outputs for Diagnostics
IEPE Sensor Power Not Required
- 4-20 mA Velocity and Acceleration Outputs
- Analytical Tool
- Outputs to PLC, DCS, SCADA

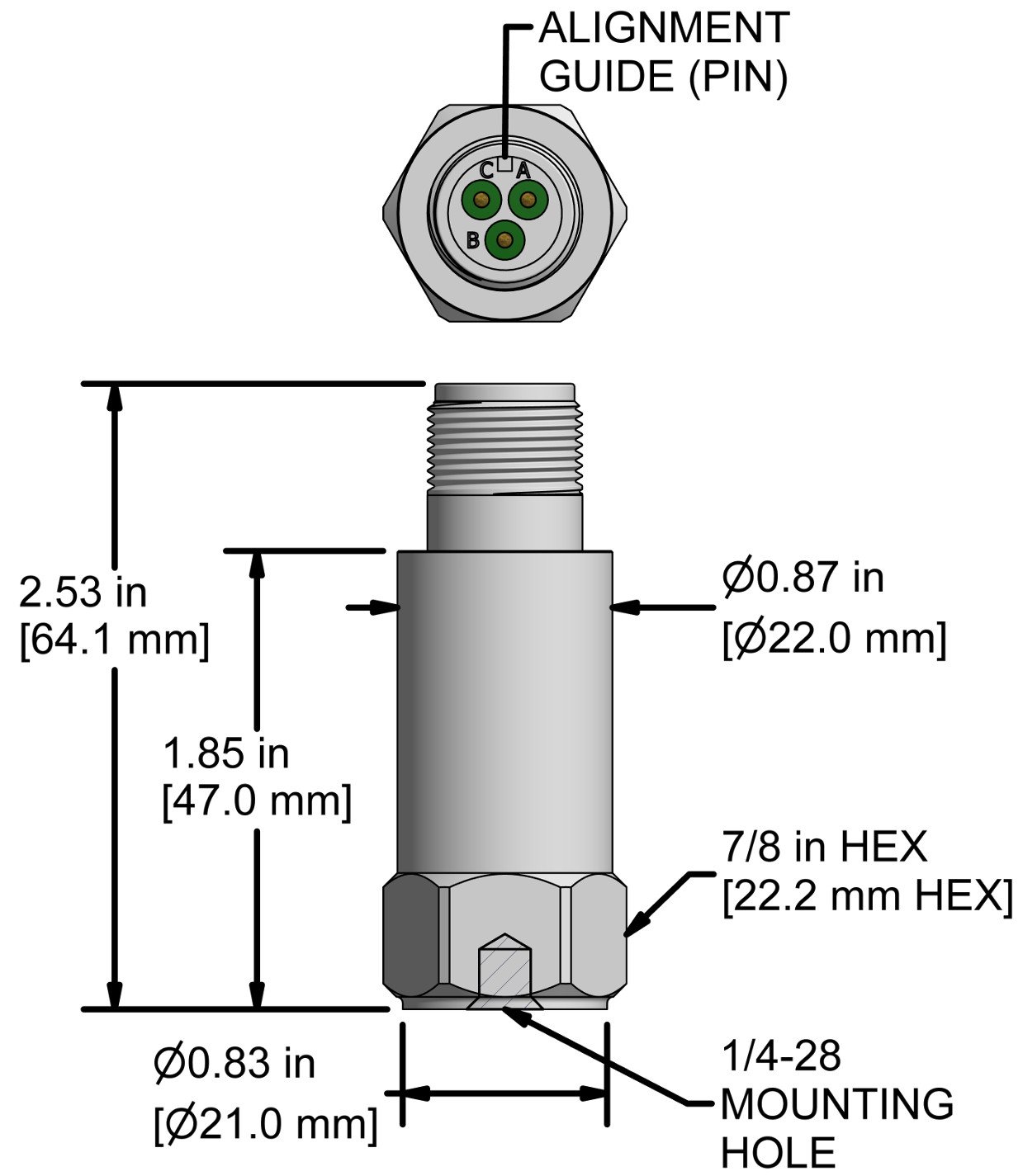

LP402-XXX-1B
3 Pin Connector
| Connector Pin | Polarity |
| A | (+) Loop Power mA Output |
| B | (-) Common |
| C | (+) Dyamic Acceleration Output |
Built To Order
LP402-XXX-2C
Integral Cable
| Conductor | Polarity |
| Red | (+) Loop Power mA Output |
| Black | (-) Common |
| White | (+) Dynamic Acceleration Output |
| Shield | Cable Drain Wire |
Built To Order
LP402-XXX-3C
Armored Integral Cable
| Conductor | Polarity |
| Red | (+) Loop Power mA Output |
| Black | (-) Common |
| White | (+) Dynamic Acceleration Output |
| Shield | Cable Drain Wire |
Built To Order
| Specifications | Standard | Metric | |
|---|---|---|---|
| Physical | |||
| Sensing Element | PZT Ceramic | ||
| Sensing Structure | Shear Mode | ||
| Weight | 3.7 oz | 105 grams | |
| Case Material | 316L Stainless Steel | ||
| Mounting Thread | 1/4-28 | ||
| Connector (Non-Integral) | 3 Pin MIL-C-5015 | ||
| Mounting Torque | 2 to 5 ft. lbs. | 2,7 to 6,8 Nm | |
| Mounting Hardware Supplied | 1/4-28 Stud | M6x1 Adapter Stud | |
| Calibration Certificate | CA10 (dynamic) |
Ordering Information
