LPH822 Series
Nonincendive, CSA North America Class 1, Division 2, IECEx/ATEX Zone 2 Approved Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit 2 Pin Connector
Regulatory Information
CSA 221421
CSA 25CA80263368X
CLI, DIV 2, GRP A, B, C and D T3/T4
CLII, DIV 1, GRP E, F and G T135°C
CLIII
Ex ec IIC T* Gc
Ex tc IIIC T135°C Dc
CLI, ZN 2, AEx ec IIC T* Gc
ZN 22, AEx tc IIIB T135°C Dc
*Temperature Class depends on the ambient temperature
T4, T135°C for ambient temperature range of -40°C to +80°C
T3 for ambient temperature range of -40°C to +121°C
Vmax = 28VDC Imax = 10mA
CSA 25CA80263368X
CLI, DIV 2, GRP A, B, C and D T3/T4
CLII, DIV 1, GRP E, F and G T135°C
CLIII
Ex ec IIC T* Gc
Ex tc IIIC T135°C Dc
CLI, ZN 2, AEx ec IIC T* Gc
ZN 22, AEx tc IIIB T135°C Dc
*Temperature Class depends on the ambient temperature
T4, T135°C for ambient temperature range of -40°C to +80°C
T3 for ambient temperature range of -40°C to +121°C
Vmax = 28VDC Imax = 10mA
CSACa 24ATEX1004X
IECEx CSA 240015X
Ex ec IIC T* °C Gc
Ex tc IIIC T135 °C Dc
T4, T135°C for ambient range of -40 °C to +80 °C
T3 for ambient range of -40 °C to +121 °C
*Temperature Class depends on the ambient temperature
V = 28VDC I = 10mA
Approved Cabling: CB102, CB103*, CB111, CB190*, CB193*, CB296 (*Approved for Use in T4 Applications Only)
LPH822-1A
2 Pin Connector
| Connector Pin | Polarity |
| A | (+) Loop Power |
| B | (-) Loop Power Return |
Built To Order
LPH822-2A
CB190 Integral Cable
| Conductor | Polarity |
| Red | (+) Loop Power |
| Black | (-) Loop Power Return |
| Shield | Cable Drain Wire |
Built To Order
LPH822-3A
CB296 Armored Integral Cable
| Conductor | Polarity |
| Red | (+) Loop Power |
| Black | (-) Loop Power Return |
| Shield | Cable Drain Wire |
Built To Order
| Specifications | Standard | Metric | |
|---|---|---|---|
| Physical | |||
| Sensing Element | PZT Ceramic | ||
| Sensing Structure | Shear Mode | ||
| Weight | 2.9 oz | 82 grams | |
| Case Material | 316L Stainless Steel | ||
| Mounting Thread | 1/4-28 Blind Tapped Hole | ||
| Connector (Non-Integral) | 2 Pin MIL-C-5015 | ||
| Mounting Torque | 2 to 5 ft. lbs. | 2,7 to 6,8 Nm | |
| Mounting Hardware Supplied | 1/4-28 Stud | M6x1 or M8x1.25 Adapter Stud | |
| Calibration Certificate | Current Output @ 100 Hz |

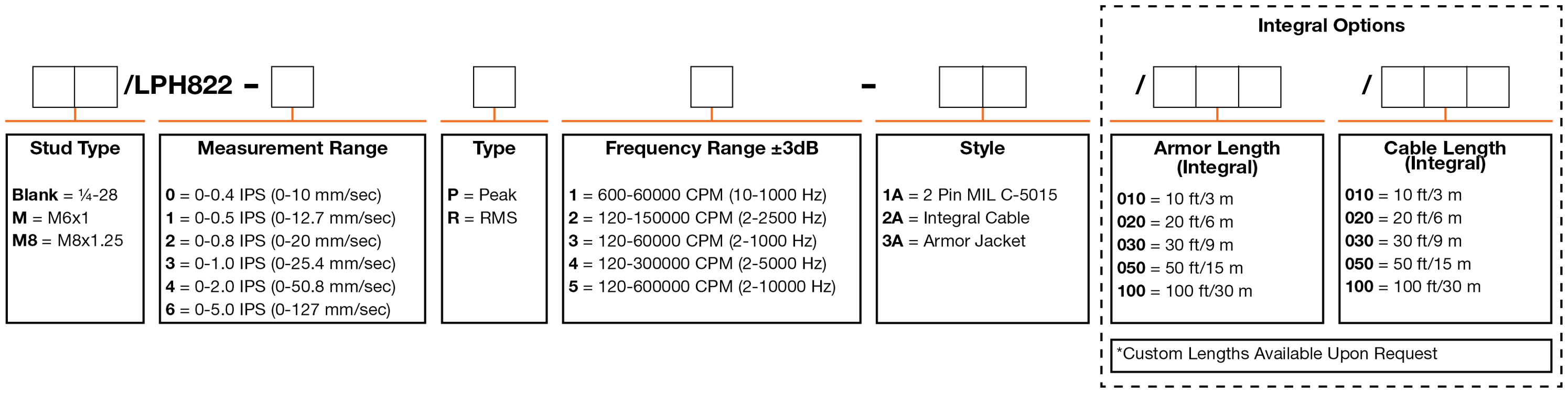

Ordering Information
