M4LP Series
5 Socket M12 Connector for use with CTC LP57 and LP67 Series Loop Power Sensors with 4-20mA Temperature Output, Polycarbonate Molded, 250 °F (121 °C) Max Temp
Product Features
5 Socket M12 Connection with 4 Live Sockets, for use with CTC LP57 and LP67 Series Loop Power Sensors with 4-20mA Temperature Output
- Please Note: This Connector is Not Compatible with TA Series Dual Output Vibration and Temperature Sensors with M12 Connectors
- Designed to Withstand a Wide Variety of Industrial Applications
- 316L Stainless Steel Locking Ring for Added Durability and Corrosion Resistance
| Specifications | |
|---|---|
| Application | Permanent Measurements |
| Max Temperature | 250 °F (121 °C) |

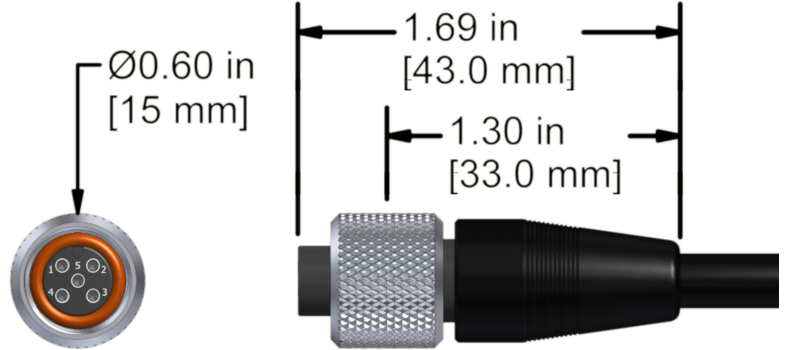

| Connector Type | 5 Socket M12 Connector |
| Shell Material | Polycarbonate Molded |
| Connector Insert Material | Polycarbonate |
| Rating | IP68 |
| Pin-Out | 1 = (+) Vibration Loop Power, Red Conductor 2 = (-) Vibration Loop Power Return, Black Conductor 3 = (+) Temp Loop Power, White Conductor 4 = (-) Temp Loop Power Return, Green Conductor |
