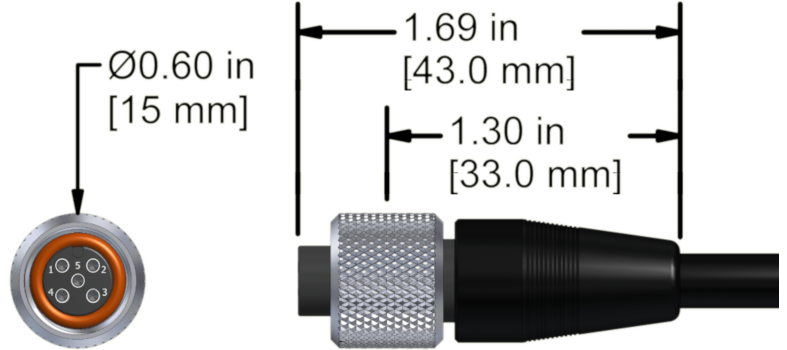

M4N Series
5 Socket M12, Nylon Molded Connector, for use with 4 Conductor Cables, Permanent Mount, 250 °F (121 °C) Max Temp
Product Features
- 5 Socket M12 Connection with 4 Live Sockets, for use with CTC Triaxial, M12 Connector Exit Sensors
- Designed to Withstand a Wide Variety of Industrial Applications
- 316L Stainless Steel Locking Ring for Added Durability and Corrosion Resistance
| Specifications | |
|---|---|
| Application | Permanent Measurement |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | 5 Socket M12 Connector |
| Shell Material | Nylon Molded |
| Connector Insert Material | Nylon |
| Rating | IP68 |
| Pin-Out | Socket 1 = Ch. Y (+) , Red Conductor Socket 2 = Ch. X (+), Green Conductor Socket 3 = Ch. Z (+), White Conductor Socket 4 = Common (-), Black Conductor |
