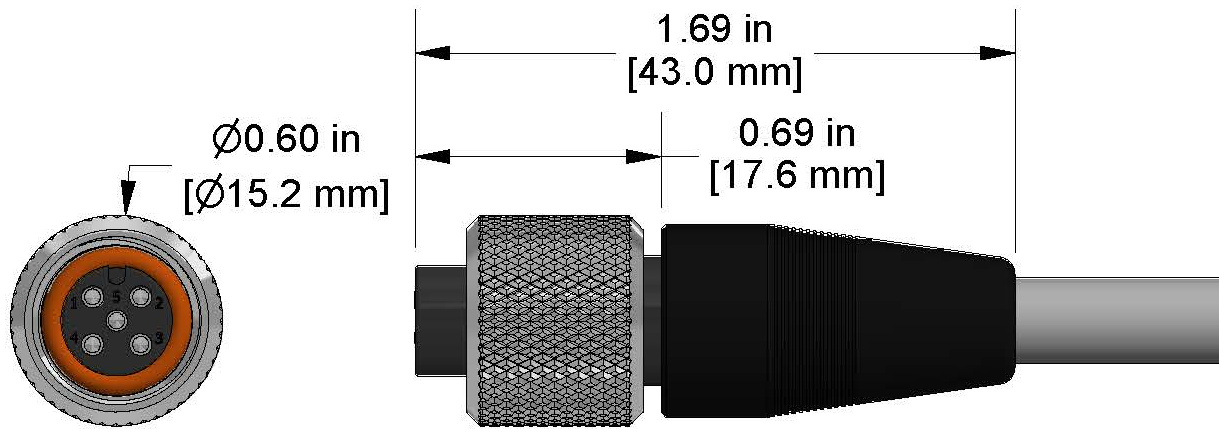

M4TR Series
5 Socket M12 Connector for CTC TR Series RTD Sensors, Polycarbonate Molded, Permanent Mount, 250 °F (121 °C)
Product Features
- For TR Series Sensors
- 316L Stainless Steel Locking Ring
- IP66
| Specifications | |
|---|---|
| Application | Permanent Measurement |
| Max Temperature | 250°F (121°C) |
| Connector Type | 5 Socket MIL |
| Shell Material | Polycarbonate |
| Connector Insert Material | Polycarbonate |
| Rating | IP66 |
| Pin-Out | 1 = Signal (+) (Red) 2 = Common (-) (Black) 3 = RTD (L1,L2) (Green & White) 4 = RTD (L3,L4) (Blue, Brown) |
