PMX1000 Standard Size
Vibration Relay & Display System for Single Output Loop Power Sensors, with Options to Include Switch Relay or Display Only, Fiberglass Enclosure, NEMA 4X (IP66) Rated, Input Options: 1 or 2 Single Output Loop Power Sensors
Product Features
Display the vibration level from a loop power vibration sensor
Capability to trigger alarms and shutdown machinery based on the amplitude of the overall vibration within a selected frequency range to protect critical machinery & processes from excessive vibration & catastrophic failure
- Sunlight viewable display of vibration levels: IPS, g's, mils or customized scale
- Relay includes two Form C relays per process controller
| Specifications | |
|---|---|
| Temperature Range | 32°F (0°C) to 140°F (60°C) |
| Enclosure Material | Fiberglass |
| Power | 85 to 265 VAC universal power supply |
| Inputs | Up to (2) 4-20 mA Signals |
| Sensor Input Options | 1 to 2 Single Output Loop Power Sensors |
| Rating | NEMA 4 (IP65 equivalnet) |
| Door Closure | Snap Latches |

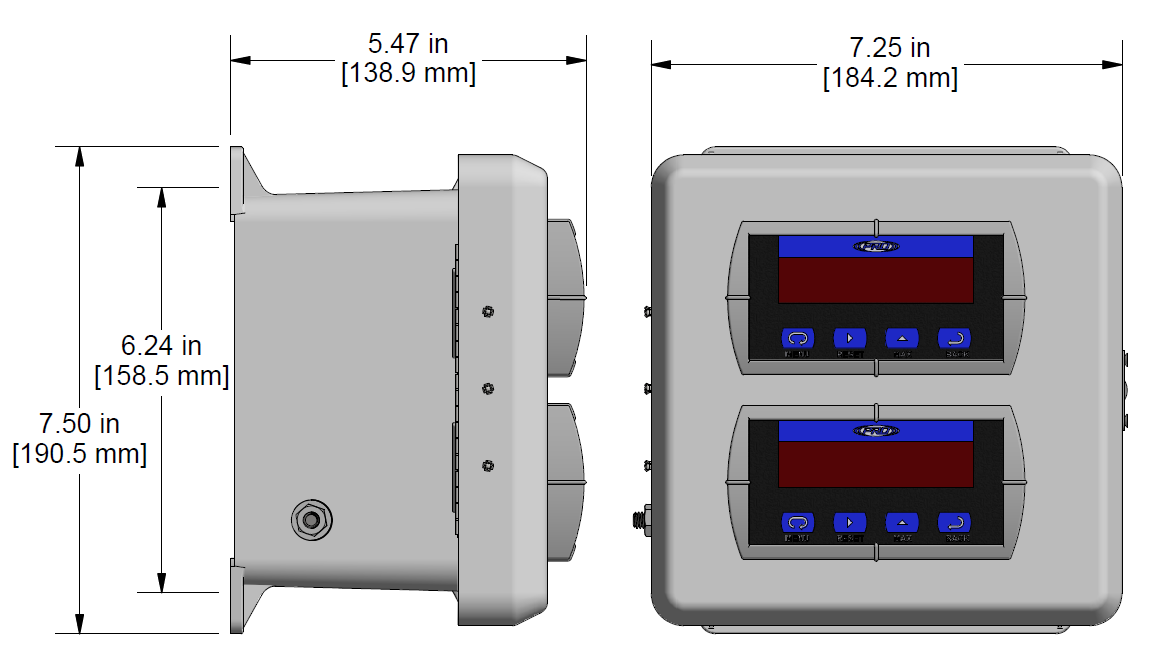

| Dimensions | 7.25 x 7.50 x 5.47 in (184 x 191 x 139 mm) |
| Resistance | Resistant to Hose Directed Fluid |

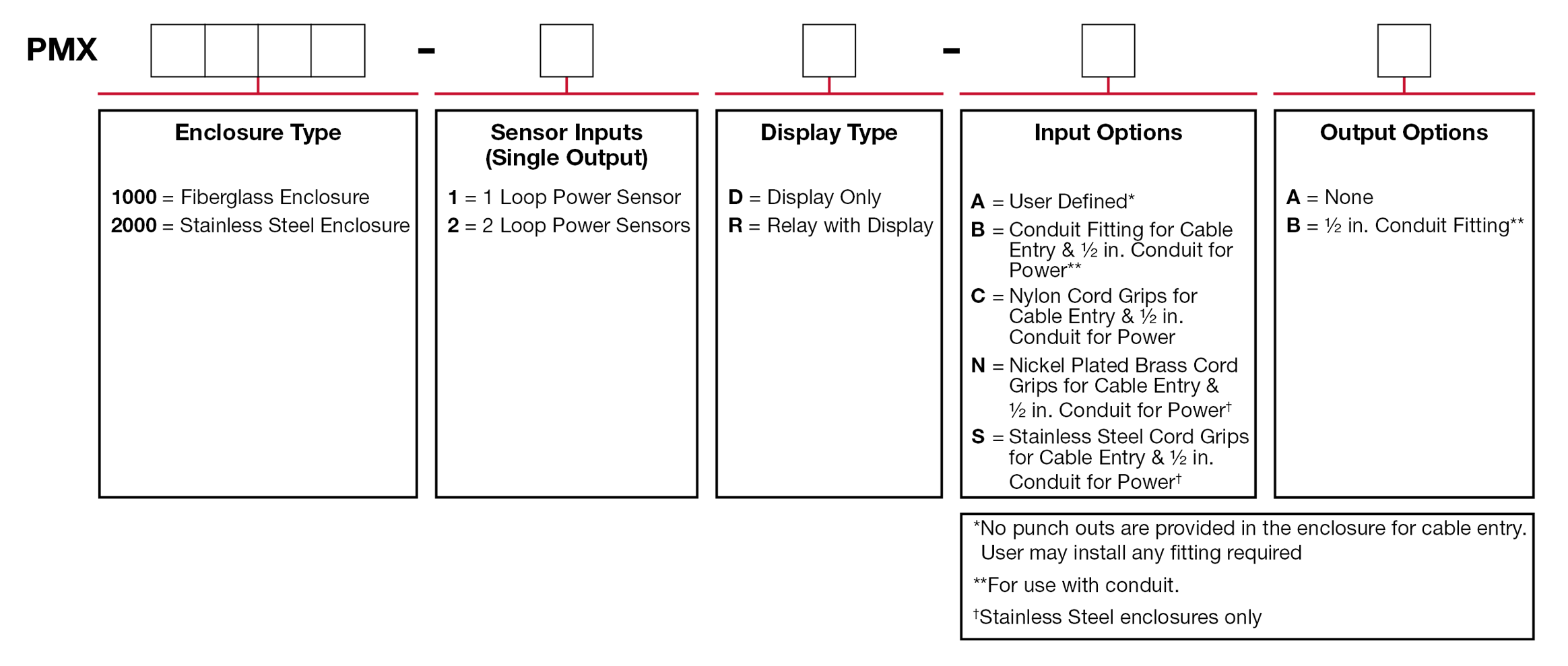

Ordering Information
