R2CX Series

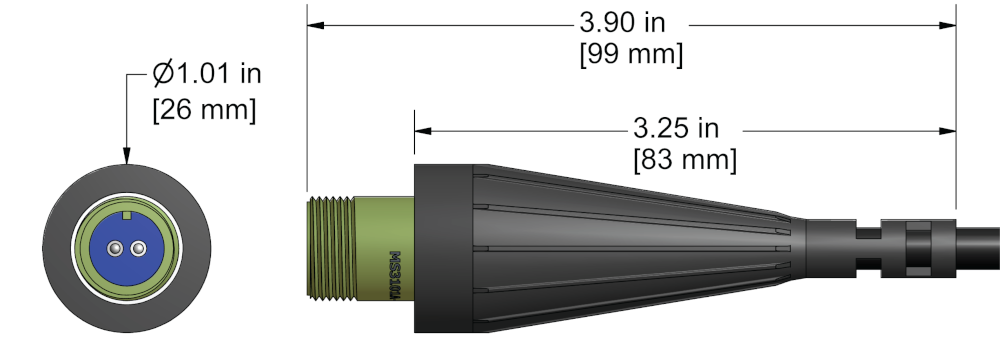

2 Pin MIL-Spec Connector with Rubber Bending Strain Relief, Epoxy Backfilled with Polyurethane Backshell, 250 °F (121 °C) Max Temp
Product Features
Compatible with 2 Conductor Armor Jacketed Cabling
- 2 Pin Connection
- Polyurethane Molded
- IP66
| Specifications | |
|---|---|
| Application | Portable Measurements Permanent Mount |
| Max Temperature | 250° F (121°C) |
| Connector Type | 2 Pin MIL-Style |
| Shell Material | Epoxy Backfilled with Polyurethane Backshell |
| Connector Insert Material | Polyurethane |
| Rating | IP66 |
| Pin-Out | A = Signal (+) B = Common (-) |
