R4JG Series
4 Pin Mini-MIL Connector with Rubber Bending Strain Relief and Grounded Backshell, Polyurethane Molded, Mates with J4 Series Connectors, 250 °F (121 °C) Max Temp
Product Features
Designed to Build Extension Cables with 4-Conductor Cabling
- Mates with CTC 4 Socket Mini-MIL Connectors
- Designed to Withstand a Wide Variety of Industrial Applications
- Creates an IP66-Rated Seal
| Specifications | |
|---|---|
| Application | Portable Measurements Permanent Mount |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | 4 Pin Mini-MIL |
| Shell Material | Polyurethane Molded |
| Connector Insert Material | Polyurethane |
| Rating | IP66 Rated |

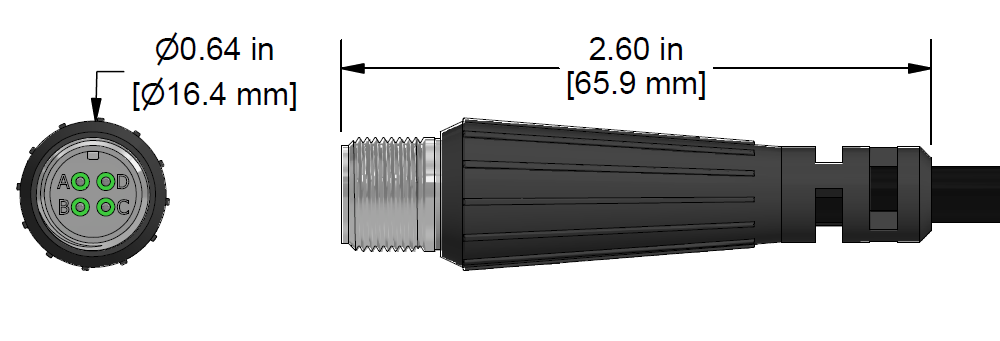

| Pin-Out | A = Y Axis Signal (+) B = X Axis Signal (+) C = Z Axis Signal (+) D = Common (-) |
