SC901 Series
Hazardous Location Approved 4-20 mA Vibration Transmitters
Product Features
Signal Conditioners Identify Transient Faults and Guard Against Failure Between Monitoring Cycles
Class I, Division 2 Approved SC for use in specified hazardous locations
- FM Approved Div. 2, Non-Incendive (FM3611), Class I, Div. 2, GRPS A, B, C, D, ambient temperature -40°C to +80°C temperature code T5
- Safe location apparatus must not use or generate in excess of 250 v
- Dynamic Vibration Output from BNC, 4-20 mA Output to SCADA, PLS or DCS
| Specifications | |
|---|---|
| Humidity Range | 0-95% Relative, Non-Condensing |

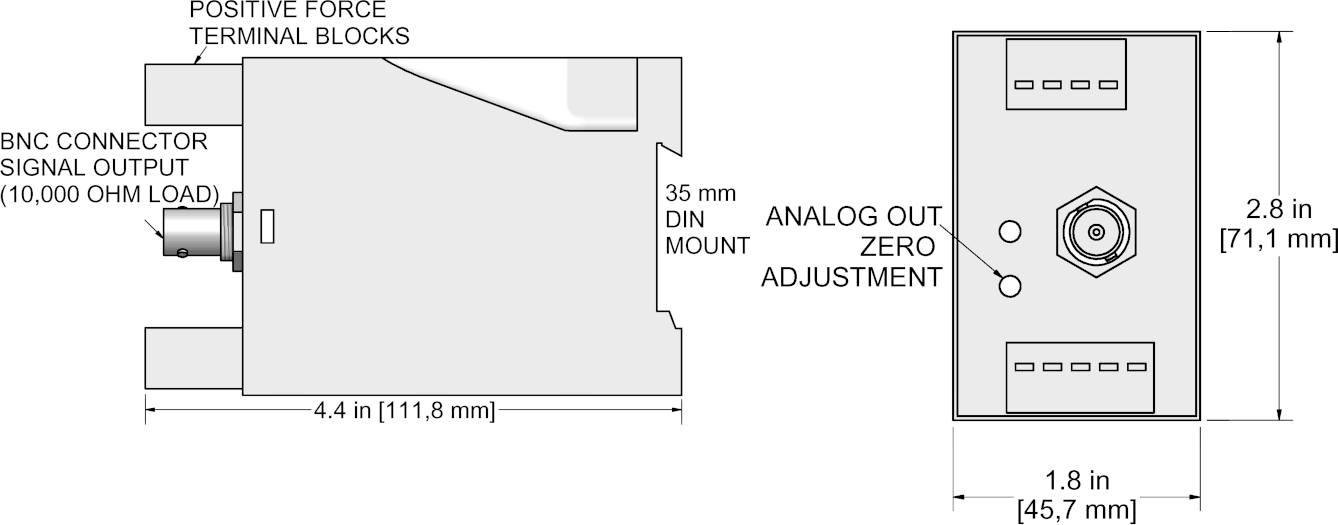

| Connectors | Positive force terminal block contacts |
| Max Frequency Response | 2 Hz to 20,000 Hz ±5% |
| Weight | 6.4 oz (181 g) |
| Input Power | 20 to 32 VDC/100 mA nominal |
| Max Load Resistance | 600 ohms |
| Isolation | 1000 VDC |
| Temperature Range | 32 to 176°F (0 to 80°C) |
