Emerson 2130 Compatible, 5 Pin Molded M12 Connector to Dual BNC "F" Jacks, 17 in. (43 cm) Overall Length, Channel "A" Yellow, Channel "B" Blue, Dual Channel Acceleration Input

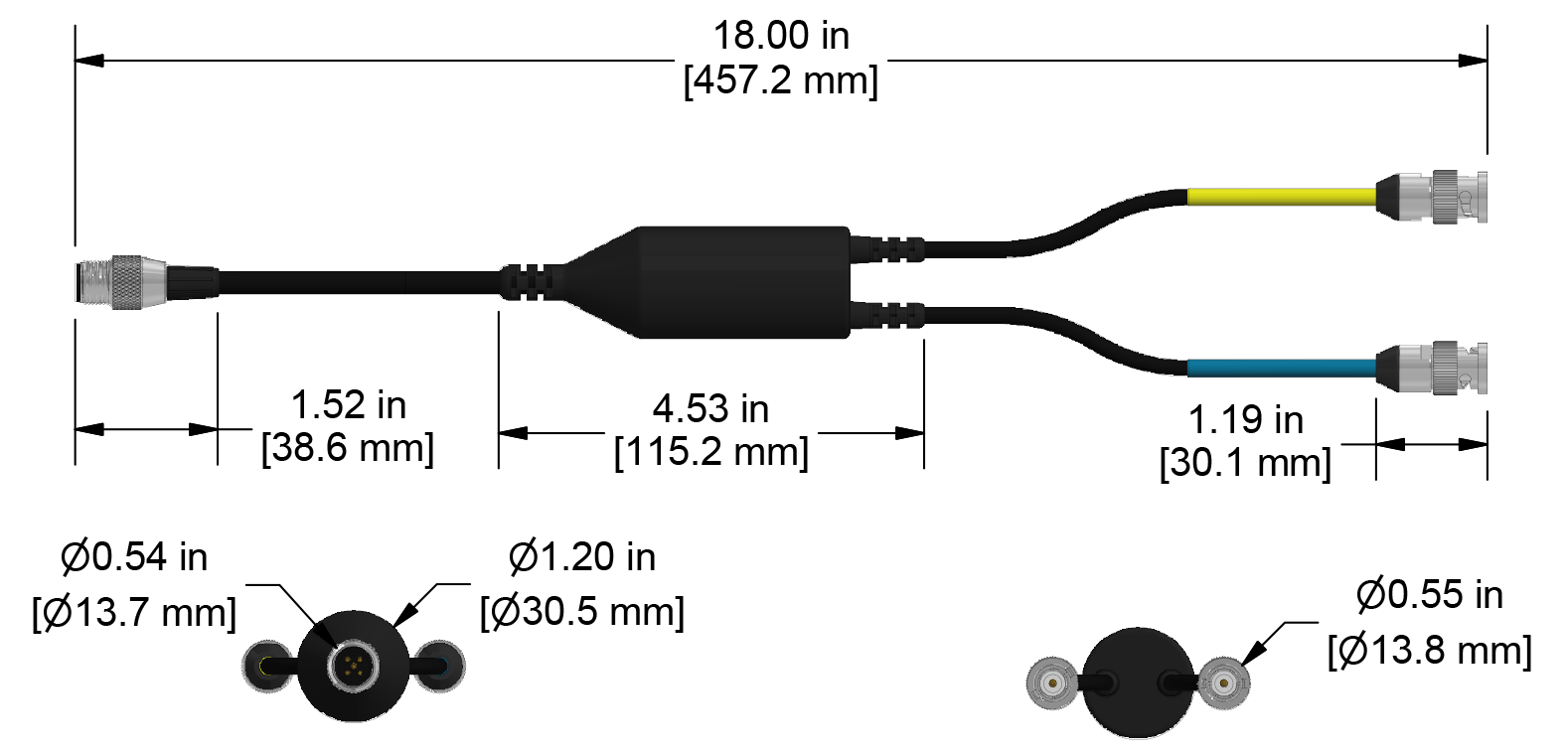

A side view of a CMX2253 data collector cable with one black cable and silver connector to the left side, with a splitter in the middle of the cable, and two black cables with silver metal connectors extending out of the right side of the splitter.
CMX2253 dimension drawing
Jacket Material Black Polyurethane
Cable Length 17 in. (43 cm) ±1 in. (2.5 cm)
Connectors 5 Pin Molded M12, to Two BNC "F" Plugs Labeled:
Chan A (Yellow)
Chan B (Blue)
Input Acceleration Input Only
Cable Diameter One 0.25 in. (6.35 mm) Cable
into Two 0.175 in. (4.45 mm) Cables
Conductor Cable One 4 Conductor Cable
into Two 2 Conductor Cables
Max Temperature 250 °F (121 °C)
Compatible Data Collectors
  • CSI2130 only
Built to Order
