C3 Series

Emerson 2120 Compatible, 25 Pin Subminature Connector, Single Channel Acceleration Input

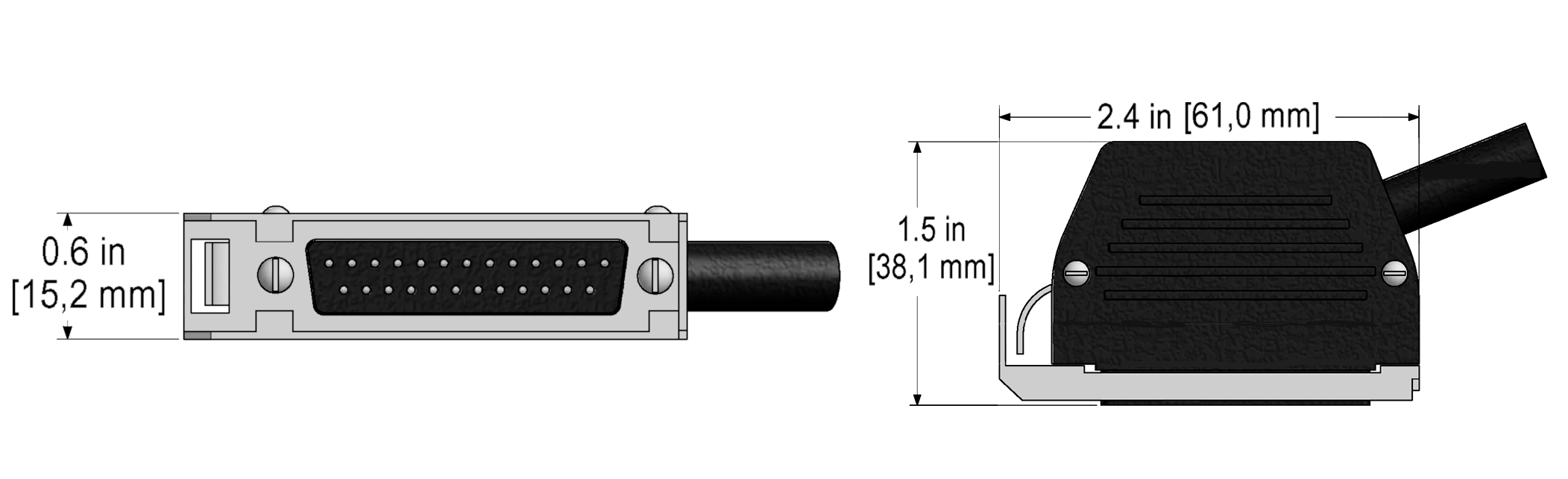

A line drawing showing the diameter and length of an assembled CTC C3 vibration sensor connector kit.
Application Portable Monitoring
Connector Type 25 Pin Subminiature
Shell Material ThermoPlastic
Connector Insert Material Steel
Rating IP66 Rated
Pin-Out 21 = Signal/Power (+)
24 = Common (-)
Built to Order
