D2CG Series

2 Socket MIL-Spec Connector, Grounded to Sensor Case, Portable Measurement, 250 °F (121 °C) Max Temp

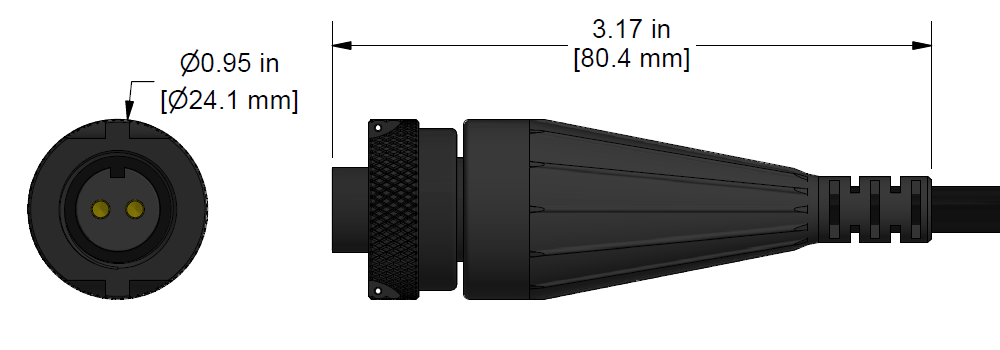

A line drawing showing the diameter and length of an assembled CTC D2CG vibration sensor connector kit.
Application Portable Measurements
Max Temperature 250 °F (121 °C)
Connector Type 2 Socket MIL-Spec
Strain Relief Rubber Bending Strain Relief
Shell Material Polyurethane
Connector Insert Material Nylon
Pin-Out A = Signal (+)
B = Common (-)
Built to Order
