D2Q Series

2 Socket MIL-Spec Connector with Grounded Backshell Approved for Class I, Division 2 Locations, Permanent Mount, 250 °F (121 °C) Max Temp

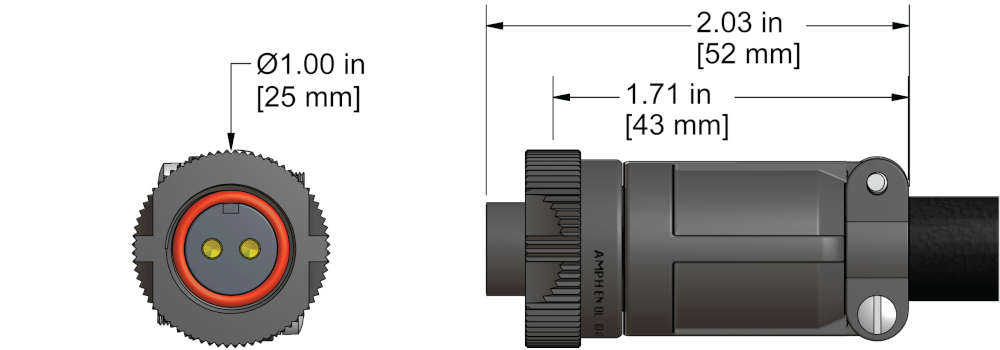

A line drawing showing the diameter and length of an assembled CTC D2Q vibration sensor connector kit.
Application Permanent Mount
Max Temperature 250 °F (121 °C)
Connector Type 2 Socket MIL-Spec
Shell Material Zinc Alloy
Connector Insert Material Neoprene
Rating IP64
Pin-Out A = Signal (+)
B = Common (-)
Built to Order
