J4L Series

4 Socket Mini-MIL, 303 Stainless Steel Hydraulic Hose Connector, Permanent Mount, 212 °F (100 °C) Max Temp

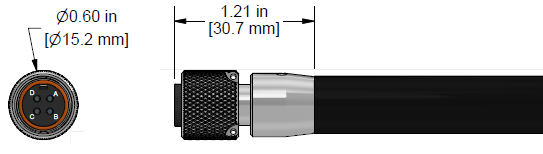

A line drawing showing the diameter and length of an assembled CTC J4L vibration sensor connector kit.
Application Permanent Monitoring
Max Temperature 212 °F (100 °C)
Connector Type 4 Socket Mini-MIL Hydraulic Hose
Shell Material 303 Stainless Steel
Connector Insert Material Polycarbonate
Rating IP68
Pin-Out Socket A = Ch. Y (+), Red Conductor
Socket B = Ch. X (+), Green Conductor
Socket C = Ch. Z (+), White Conductor
Socket D = Common (-), Black Conductor
Built to Order
