PM130 Series

Fiberglass Enclosures for vbOnline™ with 12 Sensor Inputs

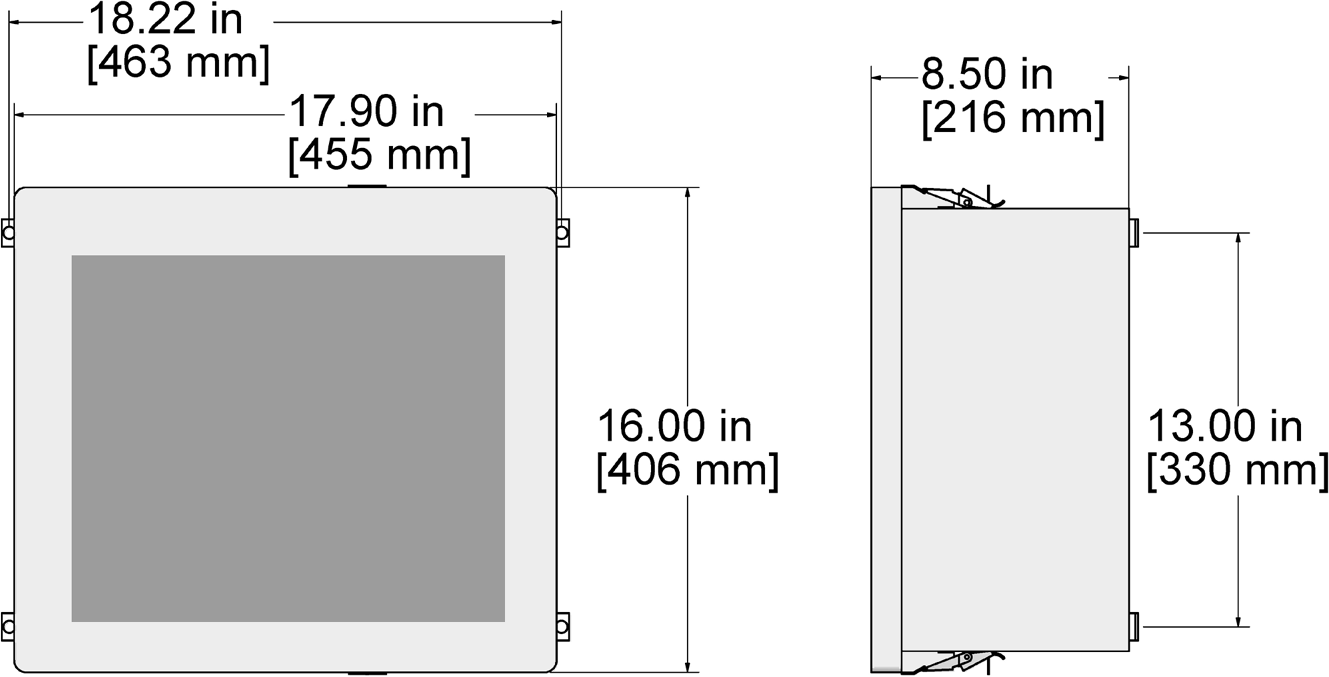

A drawing showing the dimensions of a CTC PM130 Series industrial enclosure.
Enclosure Material Fiberglass Enclosure with 304 Stainless Steel Wall Mounting Feet and Back Plate
10-32 Stainless Steel screws
UV Resistant Polycarbonate Viewing Window
Rating NEMA 4X (IP66 Equivalent)
UL 508, Type 1, 2, 3, 3R, 4, 4X, 12, 13
CSA Certified LR 89590 for use with industrial control equipment CSA Enc.1, 2, 3, 4, 4X, 12, 13
Door Closure 304 Stainless Steel Snap Latches feature padlock hasp
Continuous Stainless Steel hinge
Closed cell neoprene cord encased in continuous channel
Dimensions 18.22 x 16.00 x 8.50 in. (463 x 406 x 216 mm)
Cord Grips 0.118 - 0.256 in. (3,0 - 6,5 mm)
Resistance Resistant to Hose Directed Fluid and Corrosion

Ordering Information

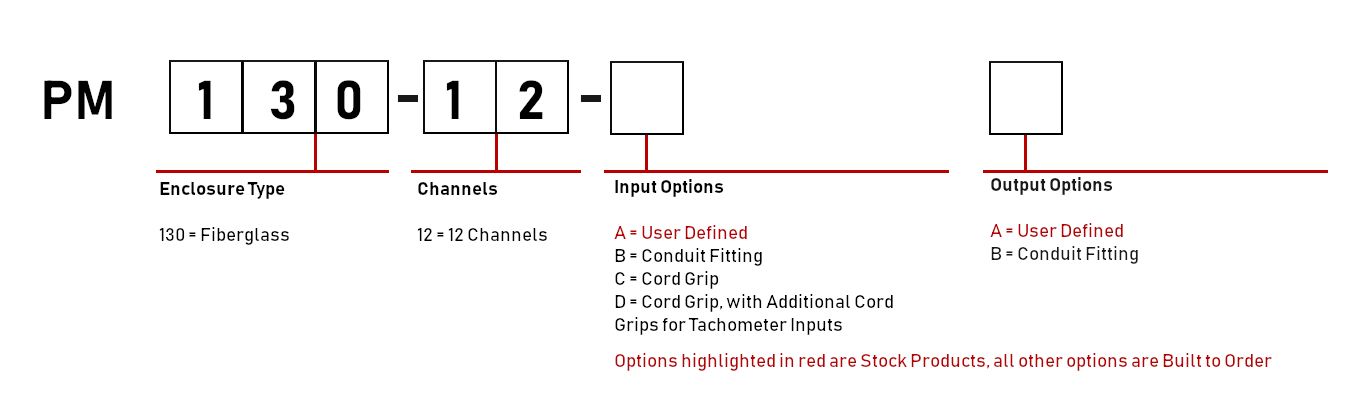

A chart showing configuration options to create a complete part number for ordering a CTC PM130 Series enclosure.
