DP1009 with Armor

Armored FFv™ Proximity Probe, 5 mm Probe Tip Diameter, with 1/4-28, 3/8-24, M8x1, or M10x1 Case Thread
Standard Mount

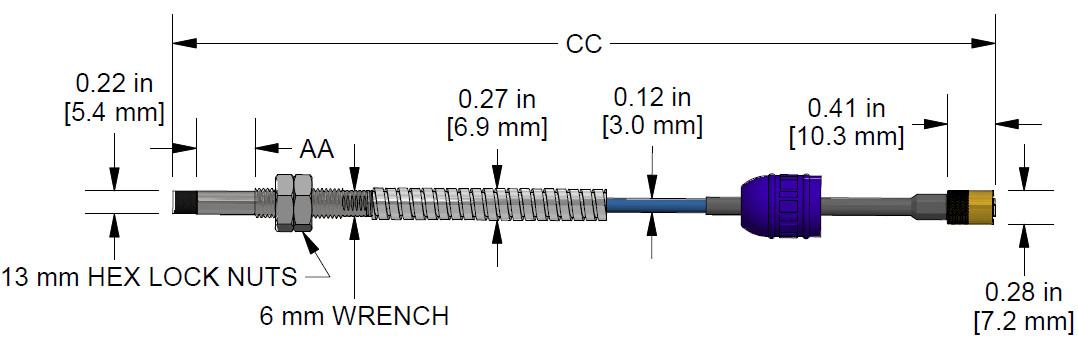

Line Drawing
Standard Mount

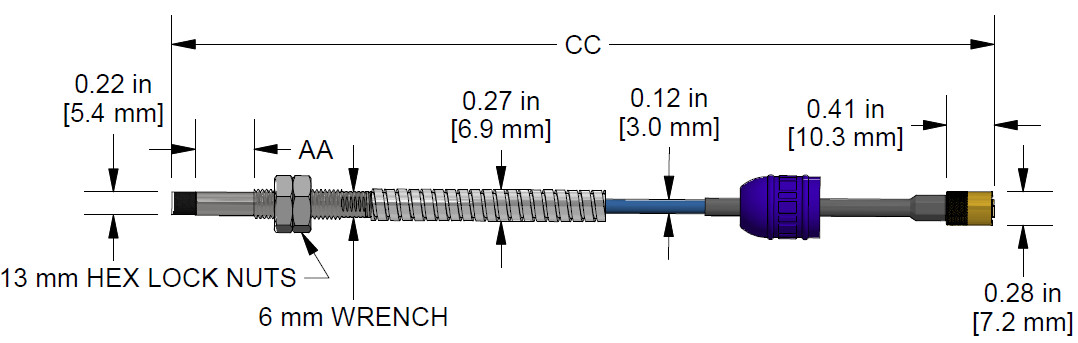

Line Drawing
Lengths AA, BB, and CC are configurable
Temperature Range -49 to 340 °F (-45 to 171 °C)
Sensitivity -200 mV/mil (-7.87 V/mm) (1 mil = 0.001 in.)
Material FEP Cable Jacket with 316L Stainless Steel Probe Body
Case Thread 1/4-28 or M8x1 (Standard Mount), 3/8-24 or M10x1 (Reverse Mount)
Wrench Flats 7/32 in. or 7 mm (Standard Mount), 7/16 in. or 11 mm (Reverse Mount)
Rating IP68
Connector SecureLock
Connector Pull Strength Up to 30 lbs.
Bending Radius 1.16 in. (2.95 cm)
Built to Order
