AC102-M12A Series

Multipurpose Accelerometer, Top Exit 4 Pin M12 Connector, 100 mV/g, ±10%
AC102-M12A
4 Pin Connector
Connector Pin Polarity
1 (+) Signal/Power
2 (-) Common
3 Not Used
4 Not Used
Stock Product
Specifications Standard Metric
Part Number AC102-M12A M/AC102-M12A
Sensitivity (±10%) 100 mV/g
Frequency Response (±3dB) 30-900,000 CPM 0,5-15000 Hz
Frequency Response (±10%) 120-600,000 CPM 2,0-10000 Hz
Dynamic Range ± 80 g, peak
*Vsource ≥ 22V, 12Vbias
Electrical
Settling Time <2.5 seconds
Voltage Source (IEPE) 18-30 VDC
Constant Current Excitation 2-10 mA
Spectral Noise @ 10 Hz 14 µg/√Hz
Spectral Noise @ 100 Hz 2.3 µg/√Hz
Spectral Noise @ 1000 Hz 2 µg/√Hz
Output Impedance <100 ohm
Bias Output Voltage 10-14 VDC
Case Isolation >108 ohm
Specifications Standard Metric
Environmental
Temperature Range -58 to 250°F -50 to 121 °C
Maximum Shock Protection 5,000 g, peak
Electromagnetic Sensitivity CE
Sealing Welded, Hermetic
SIL Rating SIL 2
Physical
Sensing Element PZT Ceramic
Sensing Structure Shear Mode
Weight 3.2 oz 90 grams
Case Material 316L Stainless Steel
Mounting 1/4-28 Blind Tapped Hole
Connector (Non-Integral) 4 Pin M12
Resonant Frequency 1,380,000 CPM 23000 Hz
Mounting Torque 2 to 5 ft. lbs. 2,7 to 6,8 Nm
Mounting Hardware 1/4-28 Stud M6x1 Adapter Stud
Calibration Certificate CA10

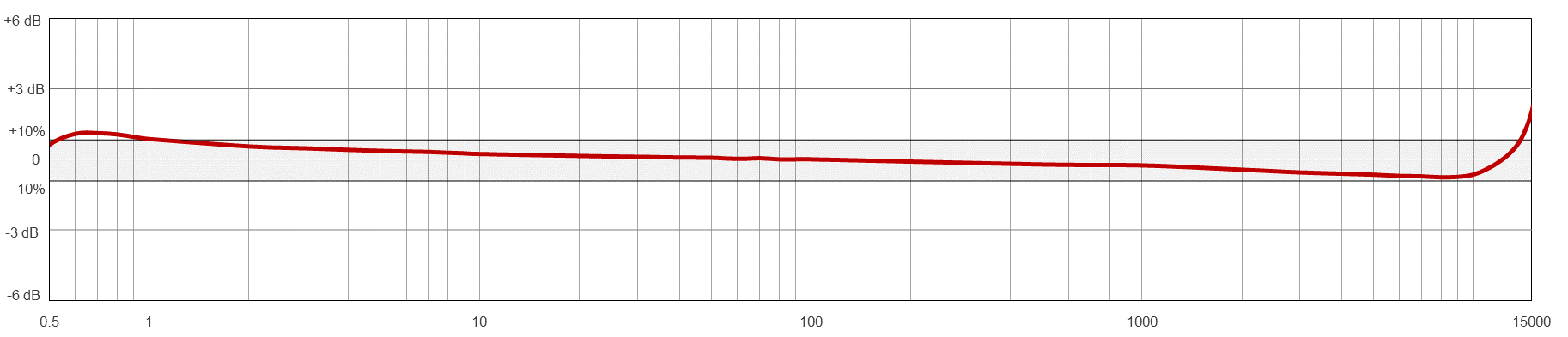

Typical Frequency Response

Frequency Response Chart
