AC150 Series

Low Cost, Multipurpose Accelerometer, Top Exit 2 Pin Connector, 100 mV/g, ±15%
AC150-1A
2 Pin Connector
Connector Pin Polarity
A (+) Signal/Power
B (-) Common
A drawing showing the dimensions and pin configuration of a CTC AC150 industrial accelerometer.
Stock Product
AC150-2C
CB103 Integral Cable
Conductor Polarity
Red (+) Signal/Power
Black (-) Common
Shield Cable Drain Wire
A drawing showing the dimensions and pin configuration of a CTC AC150 industrial accelerometer with integral cable.
Built To Order
AC150-3C
CB206 Armored Integral Cable
Conductor Polarity
Red (+) Signal/Power
Black (-) Common
Shield Cable Drain Wire
A drawing showing the dimensions and pin configuration of a CTC AC150 industrial accelerometer with armored integral cable.
Built To Order
AC150-6C
CB611 Heavy Duty Armored Integral Cable
Conductor Polarity
Red (+) Signal/Power
Black (-) Common
Shield Cable Drain Wire
A drawing showing the dimensions and pin configuration of a CTC AC150 industrial accelerometer with heavy duty armored integral cable.
Built To Order
AC150-6N
CB111 FEP Jacketed Integral Cable
Conductor Polarity
Red (+) Signal/Power
Black (-) Common
Shield Cable Drain Wire
A drawing showing the dimensions and pin configuration of a CTC AC150 industrial accelerometer with FEP jacketed integral cable.
Built To Order
Specifications Standard Metric
Part Number AC150 M/ or M8/AC150
Sensitivity (±15%) 100 mV/g
Frequency Response (±3dB) 60-600,000 CPM 1,0-10000 Hz
Dynamic Range ± 80 g, peak
*Vsource ≥ 22V, 12Vbias
Electrical
Settling Time <2.5 seconds
Voltage Source 18-30 VDC
Constant Current Excitation 2-10 mA
Spectral Noise @ 10 Hz 14 µg/√Hz
Spectral Noise @ 100 Hz 2.3 µg/√Hz
Spectral Noise @ 1000 Hz 2 µg/√Hz
Output Impedance <100 ohm
Bias Output Voltage 10-14 VDC
Case Isolation >108 ohm
Specifications Standard Metric
Environmental
Operating Temperature Range -58 to 250 °F -50 to 121 °C
Maximum Shock Protection 5,000 g, peak
Electromagnetic Sensitivity CE
Sealing Welded, Hermetic
Submersible Depth 200 ft. 60 m
SIL Rating SIL 2
Physical
Sensing Element PZT Ceramic
Sensing Structure Shear Mode
Weight 3.2 oz 90 grams
Case Material 316L Stainless Steel
Mounting Thread 1/4-28 Blind Tapped Hole
Connector (Non-Integral) 2 Pin MIL-C-5015
Resonant Frequency 1,380,000 CPM 23000 Hz
Mounting Torque 2 to 5 ft. lbs. 2,7 to 6,8 Nm
Mounting Hardware Supplied 1/4-28 Stud M6x1 or M8x1.25 Adapter Stud
Calibration Certificate CA10

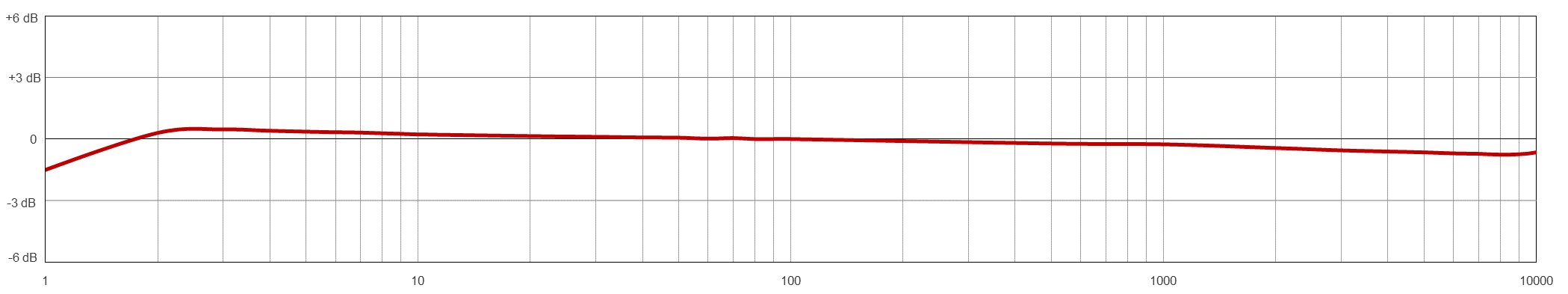

Typical Frequency Response

A line graph showing the frequency resopnse of a CTC AC150 condition monitoring sensor.
