LP812 Series

Nonincendive, Intrinsically Safe Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit 2 Pin Connector
LP812-XXX-1B
2 Pin Connector
Connector Pin Polarity
A (+) Loop Power mA Output
B (-) Common
LP812-$$$-1B dimension drawing
Built To Order
LP812-XXX-3C
Armored Integral Cable
Conductor Polarity
Red (+) Loop Power mA Output
Black (-) Common
Shield Cable Drain Wire
LP812-$$$-3C dimension drawing
Built To Order
LP812-XXX-9C
Integral Cable
Conductor Polarity
Red (+) Loop Power mA Output
Black (-) Common
Shield Cable Drain Wire
LP812-$$$-9C dimension drawing
Built To Order
Specifications Standard Metric
Part Number LP812 M/ or M8/LP812
Tolerance: 4 mA (± 5%)
Tolerance: 20 mA (± 10%)
Electrical
Settling Time <60 Seconds
Voltage Source (IEPE) 12-28 VDC
Case Isolation >108 ohm
Environmental
Operating Temperature Range -4 to 176 °F -20 to 80 °C
Electromagnetic Sensitivity CE
Sealing Welded, Hermetic
Specifications Standard Metric
Physical
Sensing Element PZT Ceramic
Sensing Structure Shear Mode
Weight 3.7 oz 105 grams
Case Material 316L Stainless Steel
Mounting Thread 1/4-28 Blind Tapped Hole
Connector (Non-Integral) 2 Pin MIL-C-5015
Mounting Torque 2 to 5 ft. lbs. 2,7 to 6,8 Nm
Mounting Hardware Supplied 1/4-28 Stud M6x1 or M8x1.25 Adapter Stud
Calibration Certificate Current Output @ 100 Hz

Ordering Information

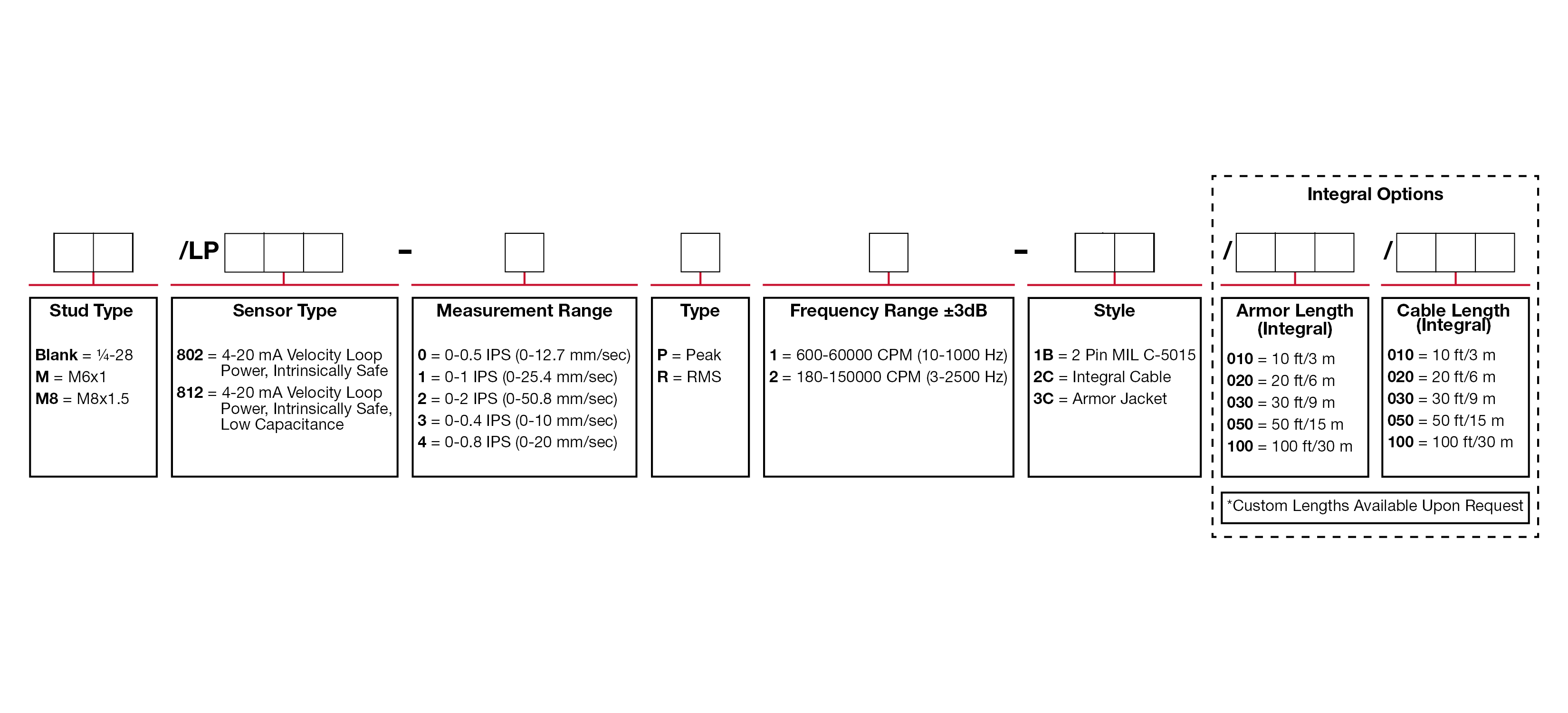

LP812 Ordering Information
