LP852 Series
Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit 2 Pin Connector
Product Features
Continuous Monitoring in Hazardous Locations
- Requires Energy Limiting Barriers such as IS111-1B
- Works with Standard Cables
- IECEx Certification
LP852-XXX-1B
2 Pin Connector
| Connector Pin | Polarity |
| A | (+) Loop Power mA Output |
| B | (-) Common |
Built To Order
LP852-XXX-2C
Integral Cable (CB103)
| Conductor | Polarity |
| Red | (+) Loop Power mA Output |
| Black | (-) Common |
| Shield | Cable Drain Wire |
Built To Order
LP852-XXX-3C
Armored Integral Cable (CB206)
| Conductor | Polarity |
| Red | (+) Loop Power mA Output |
| Black | (-) Common |
| Shield | Cable Drain Wire |
Built To Order
| Specifications | Standard | Metric | |
|---|---|---|---|
| Physical | |||
| Sensing Element | PZT Ceramic | ||
| Sensing Structure | Shear Mode | ||
| Weight | 3.7 oz | 105 grams | |
| Case Material | 316L Stainless Steel | ||
| Mounting Thread | 1/4-28 Blind Tapped Hole | ||
| Connector (Non-Integral) | 2 Pin MIL-C-5015 | ||
| Mounting Torque | 2 to 5 ft. lbs. | 2,7 to 6,8 Nm | |
| Mounting Hardware Supplied | 1/4-28 Stud | M6x1 or M8x1.25 Adapter Stud | |
| Calibration Certificate | Current Output @ 100 Hz |

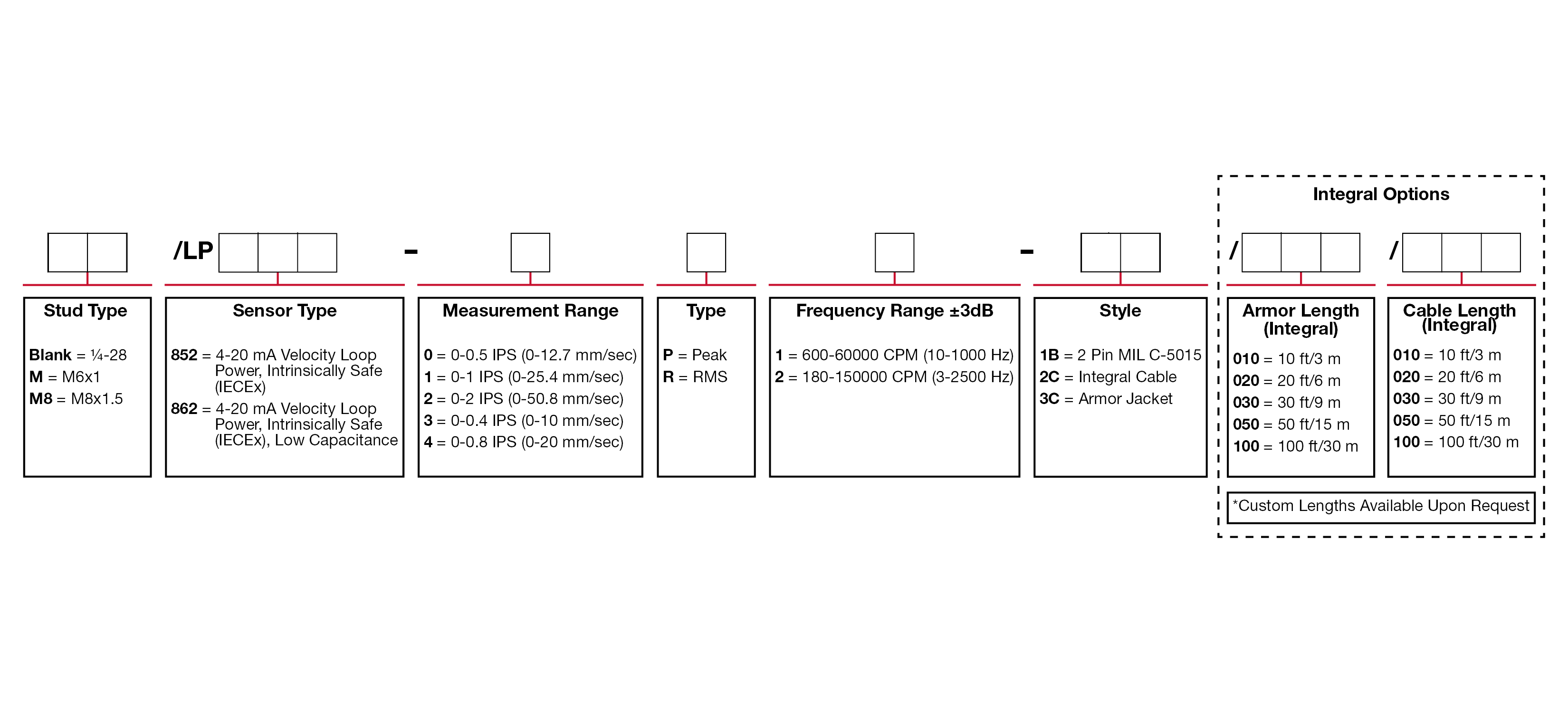

Ordering Information
