LP852-XXX-5XC Series
Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit with Flying Leads
Product Features
Continuous Monitoring in Hazardous Locations
Velocity 4-20 mA Output for Applications in Hazardous Locations
- Can be used with IS311-1B Explosion Proof Elbow
- Requires Energy Limiting Barriers
- IECEx Certification
LP852-XXX-51C
1/4 Inch NPT Mount
| Conductor | Polarity |
| Red | (+) Loop Power mA Output |
| Black | (-) Common |
Built To Order
LP852-XXX-52C
1/2 Inch NPT Mount
| Conductor | Polarity |
| Red | (+) Loop Power mA Output |
| Black | (-) Common |
Built To Order
| Specifications | Standard | Metric | |
|---|---|---|---|
| Physical | |||
| Sensing Element | PZT Ceramic | ||
| Sensing Structure | Shear Mode | ||
| Weight | 12 oz | 340 grams | |
| Case Material | 316L Stainless Steel | ||
| Mounting Thread | 1/4 NPT (LP852-51C) 1/2 NPT (LP852-52C) |
||
| Connector (Non-Integral) | Flying Leads | ||
| Mounting Torque | 2 to 5 ft.lbs. | 2,7 to 6,8 Nm | |
| Calibration Certificate | Current Output @ 100 Hz |

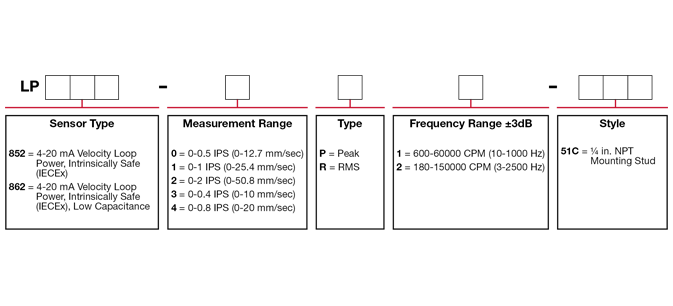

Ordering Information
