LP932-XXX-51C Series

Nonincendive, Class I, Division 2 (ATEX Zone 2) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Acceleration, Top Exit with Flying Leads
LP932-XXX-51C
1/4 inch NPT Mount
Conductor Polarity
Red (+) Loop Power mA Output
Black (-) Common
LP932-$$$-51C dimension drawing
Built To Order
Specifications Standard Metric
Tolerance: 4 mA (±10%)
Tolerance: 20 mA (± 10%)
Electrical
Settling Time <60 Seconds
Voltage Source (IEPE) 12-28 VDC
Case Isolation >108 ohm
Environmental
Operating Temperature Range -4 to 176 °F -20 to 80 °C
Electromagnetic Sensitivity CE
Sealing Welded, Hermetic
Specifications Standard Metric
Physical
Sensing Element PZT Ceramic
Sensing Structure Shear Mode
Weight 12 oz 340 grams
Case Material 316L Stainless Steel
Mounting Thread 1/4 NPT
Connector (Non-Integral) Flying Leads
Mounting Torque 2 to 5 ft. lbs. 2,7 to 6,8 Nm
Calibration Certificate Current Output @ 100 Hz

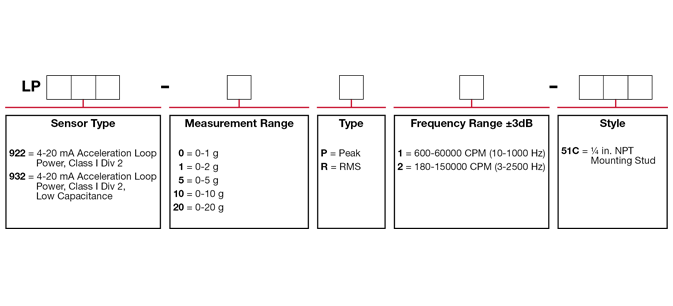

Ordering Information

LP932-XXX-51C Ordering Information
