High Temperature Vibration Sensors

For manufacturing processes that operate in high temperature environments, like many machines in paper plants, metal processing, and energy production, reliable and accurate vibration sensing is crucial for equipment monitoring and predictive maintenance. For high temperature processes, condition monitoring is not only crucial to ensure optimal performance, but more importantly to mitigate human safety and fire risks. CTC offers a range of high temperature vibration sensors specifically designed to withstand extreme temperatures while providing precise and actionable data.

Our portfolio of robust, high temperature vibration sensors is engineered to perform flawlessly in demanding environments. These sensors utilize advanced technologies and materials to maintain their functionality and accuracy even at elevated temperatures.

Benefits of CTC's high temperature sensors include:

1. High Temperature Sensor Construction
CTC's high temperature vibration monitoring sensors are constructed using specialized materials and components that can withstand extreme heat conditions. They are engineered to maintain their structural integrity and measurement capabilities in temperature ranges exceeding typical sensor limitations, up to 325 °F (162 °C).

2. Precise Vibration Measurement
CTC's high temperature vibration sensors offer exceptional accuracy and sensitivity, allowing for reliable detection and monitoring of vibrations even in challenging thermal environments. They are designed to capture subtle vibrations and provide valuable insights into the performance, condition, and health of equipment, enabling proactive maintenance and minimizing downtime.

3. Robust Durability
Our ruggedized design and 316L sensor cases are designed to withstand the harshest environments when paired with our ruggedized, high temperature cabling. CTC's V2R Viton® seal-tight boot connectors offer the most chemical and heat resistance of any connector on the market, making it the ideal choice for use with high-temperature sensors.

CTC's Portfolio of High Temperature Accelerometer Offerings:

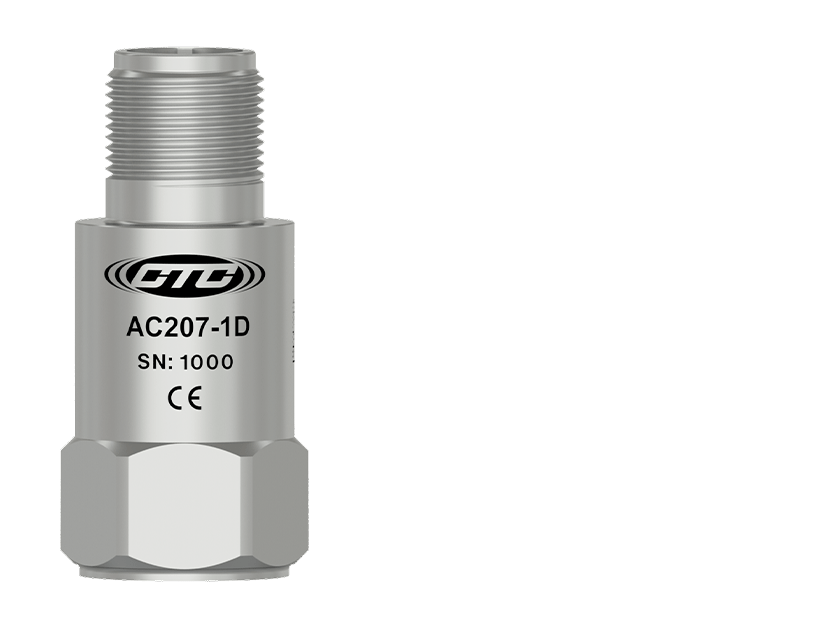

A render of CTC's AC207 standard size, top exit, high temperature accelerometer.
AC207 High Temperature IEPE Accelerometer
325 °F (162 °C) Max Temp, Top Exit 2 Pin Connector, 100 mV/g, ±10% sensitivity tolerance

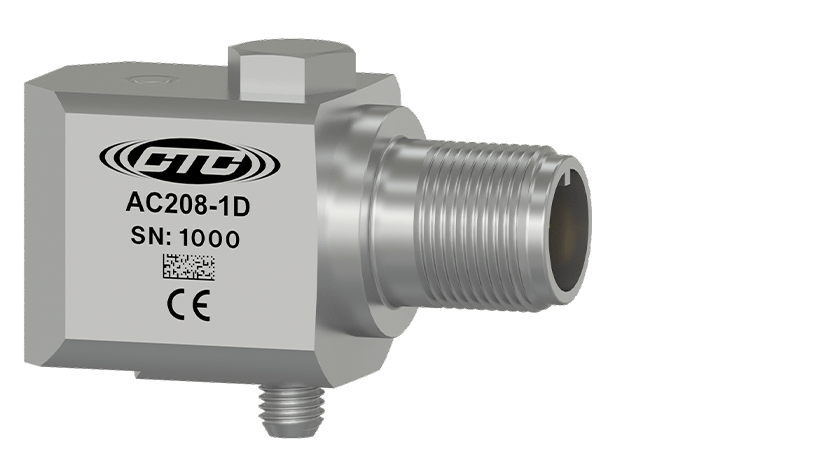

AC208 High Temperature IEPE Accelerometer
High Temperature IEPE Accelerometer, 325 °F (162 °C) Max Temp, Side Exit 2 Pin Connector, 100 mV/g, ±10% sensitivity tolerance

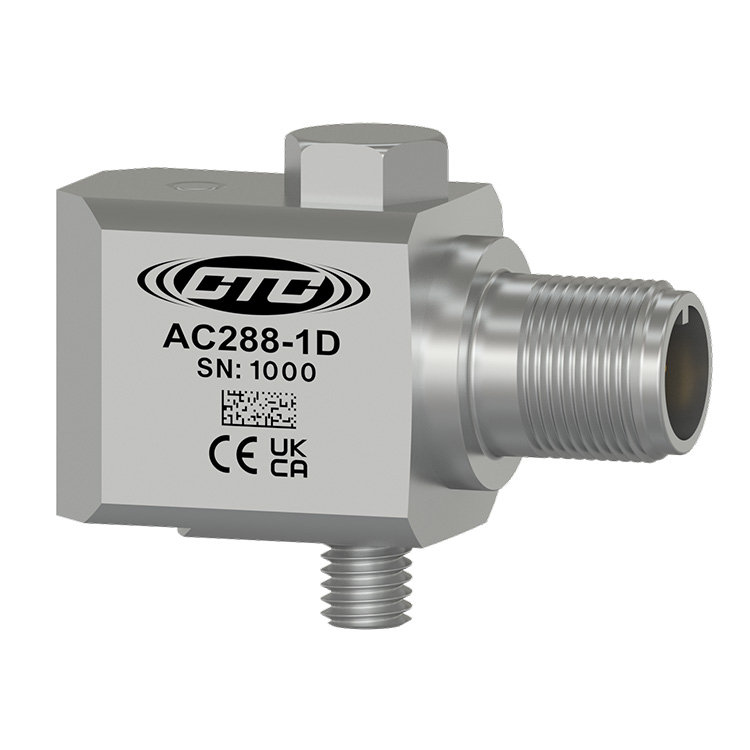

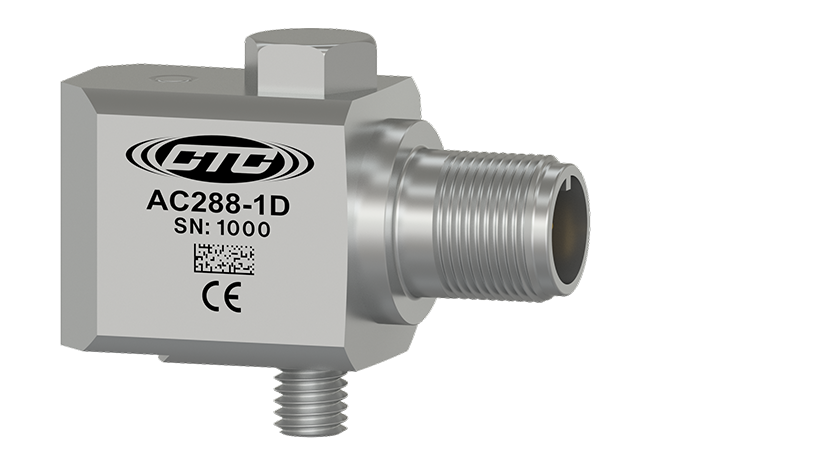

AC288 High Temperature IEPE Accelerometer
High Temperature IEPE Accelerometer, 325 °F (162 °C) Max Temp, M8x1.25 Captive Bolt, Side Exit 2 Pin Connector, 100 mV/g, ±10% sensitivity tolerance

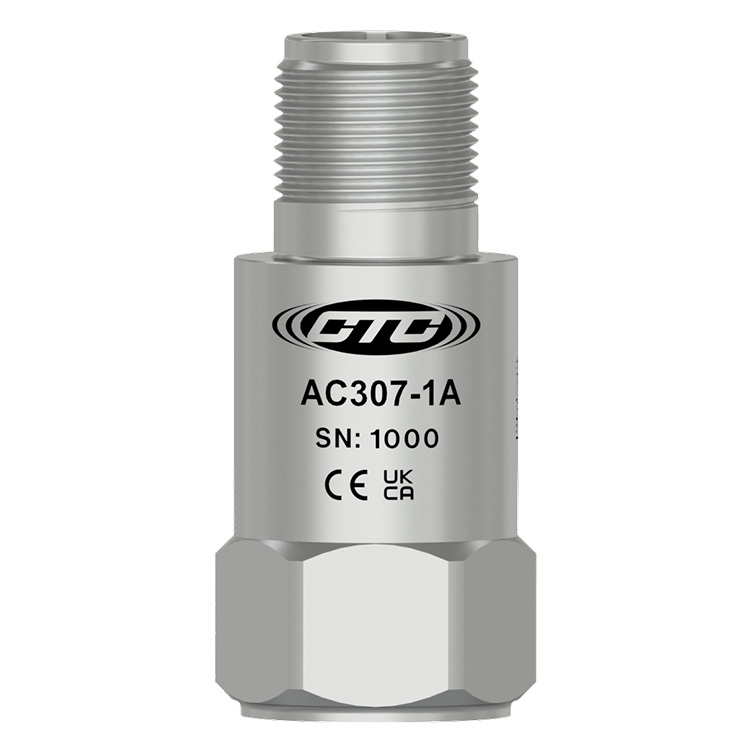

A render of CTC's AC307 standard size, top exit, high temperature accelerometer.
AC307 High Temperature IEPE Accelerometer
Premium High Temperature IEPE Accelerometer, 325 °F (162 °C) Max Temp, Top Exit 2 Pin Connector, 100 mV/g, ±5%

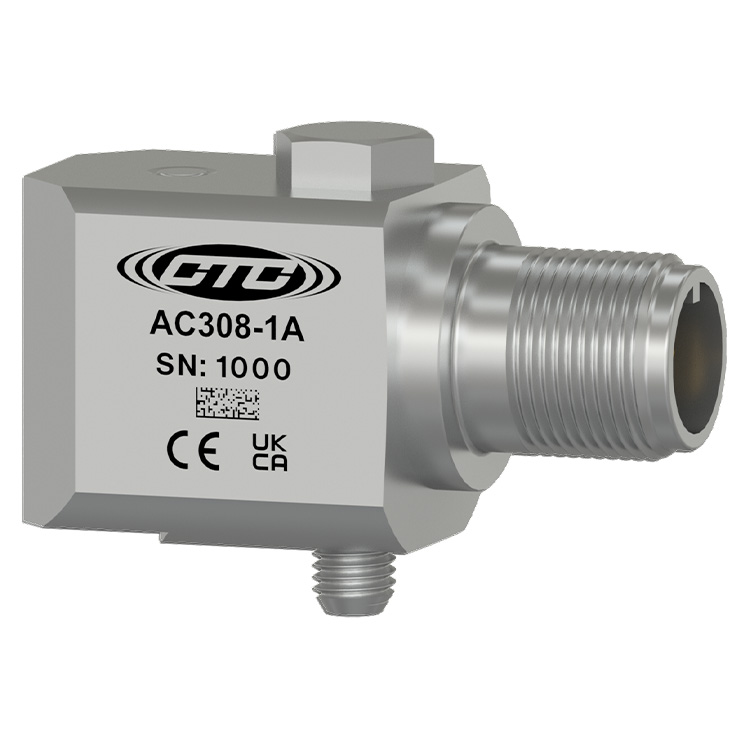

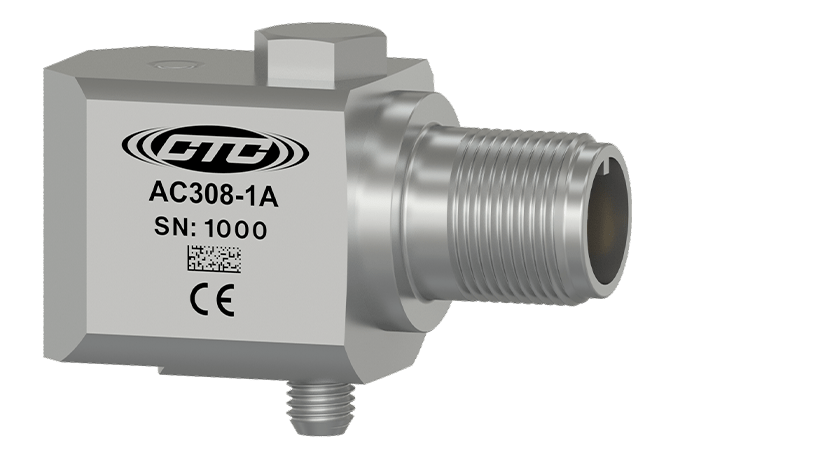

A render of CTC's AC308 standard size, side exit, high temperature accelerometer.
AC308 High Temperature IEPE Accelerometer
Premium High Temperature IEPE Accelerometer, 325 °F (162 °C) Max Temp, Side Exit 2 Pin Connector, 100 mV/g, ±5%

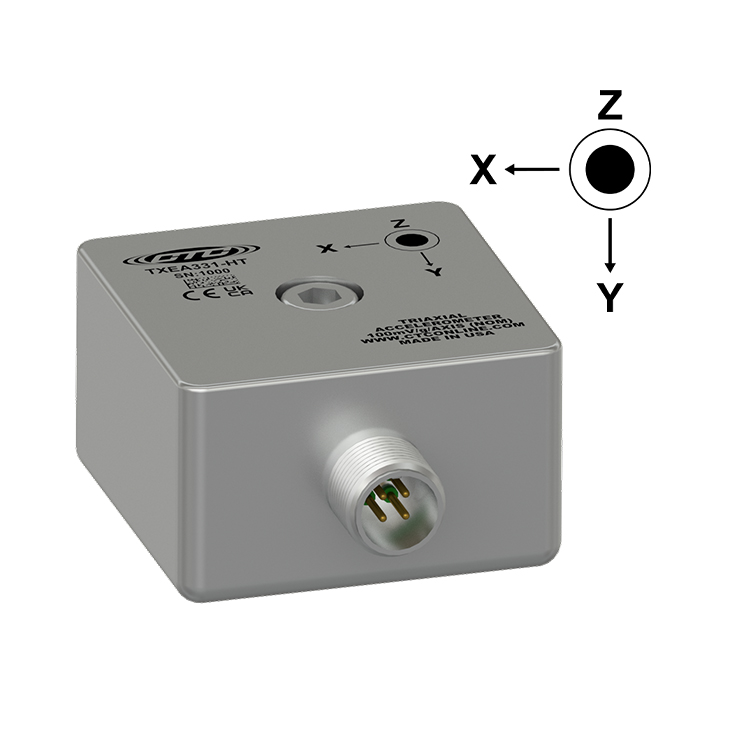

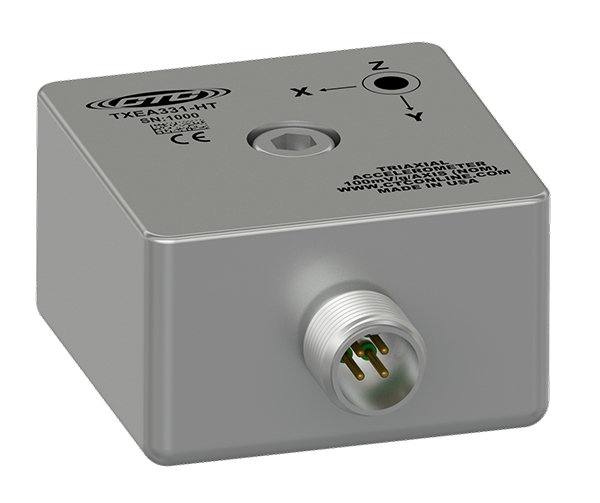

A rend or CTC's TXEA331-HT standard size triaxial accelerometer
TXEA331-HT High Temperature Triaxial Accelerometer
Premium, High Temperature Triaxial Accelerometer, 100 mV/g, Side Exit 4 Pin Connector, ±5%

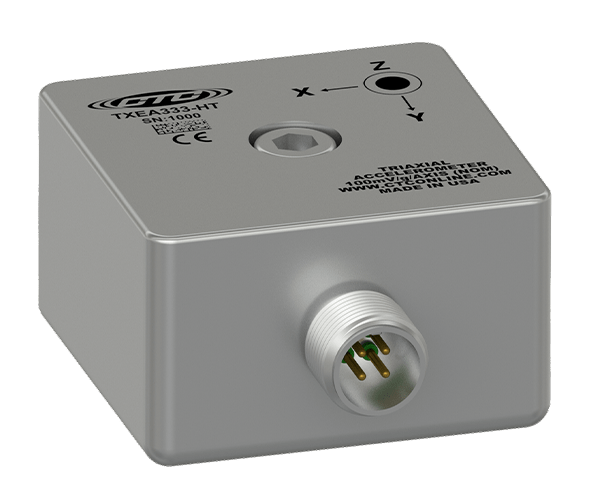

A render of CTC's TXEA333-HT standard size traixial high temperature accelerometer.
TXEA333-HT High Temperature Triaxial Accelerometer
Low Cost, High Temperature Triaxial Accelerometer, Side Exit 4 Pin Connector, 100 mV/g, ±15%
