MOUNTING HARDWARE & SPECIALTY MOUNTING ADAPTERS

BACKED BY THE CTC LINE’S INDUSTRY-LEADING UNCONDITIONAL LIFETIME WARRANTY

CTC offers a variety of mounting studs, adapters, and adhesive and stud-mounted sensor mounting pads. Magnet mounting pad options for portable field applications are also available, including flat and two-rail mounting configurations. Additionally, we offer specialty mounting accessories for fin-cooled motors as well as a variety of extension adapters, which allow access to traditionally hard-to-reach bearing locations.

SPECIALTY MOUNTING ADAPTERS & STUDS:

MH108-1B
1/4-28 to 1/4-28 Mounting Stud, Stainless Steel, 0.37 in. (9.398 mm) Length

MH108-3B
1/4-28 to 10-32 Adapter Stud, Stainless Steel, 0.32 in. (8 mm) Length

MH108-4B
1/4-28 Mounting Screw, Stainless Steel, 0.5 in. (13 mm) Length

MH108-5B
1/4-28 to M6x1 Adapter Stud, Stainless Steel, 0.44 in. (11 mm) Length

MH108-6B
1/4-28 to M8x1.25 Adapter Stud, Stainless Steel, 0.5 in. (13 mm) Length

MH108-7B
1/4-28 to M10x1.25 Adapter Stud, Stainless Steel, 0.63 in. (16 mm) Length

RARE EARTH MAGNETIC BASES:

Made from Neodymium Iron Boron.

MH103-1B
Flat Surface Magnet,
Pull Strength: 40 lbs / 18 kg,
1 in. (25.4 mm) OD,
0.46 in. (11.68 mm) Height

MH104-1B
Flat Surface Magnet,
Pull Strength: 60 lbs / 27 kg,
1.25 in. (31.75 mm) OD,
0.46 in.(11.68 mm) Height

MH122-1A
Flat Surface Magnet,
Pull Strength: 40 lbs / 18 kg,
1 in. (25.4 mm) OD,
0.68 in. (17.27 mm) Height

MH136-1A
Flat Surface Magnet,
Pull Strength: 25 lbs / 11 kg,
0.75 in. (19.05 mm) OD,
0.45 in. (11.43 mm) Height

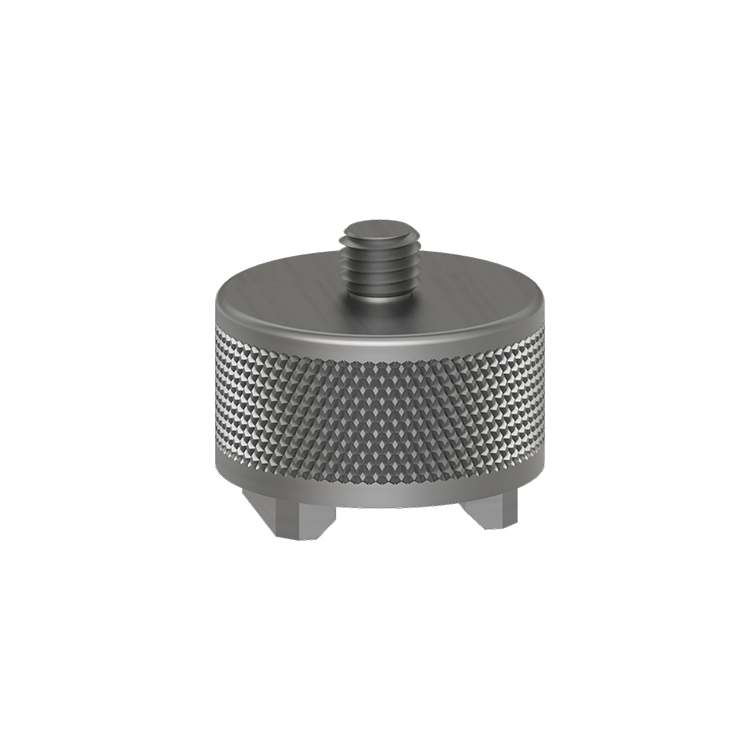

MH112-1A
Multipurpose Magnet,
Pull Strength: 30 lbs / 14 kg,
1 in. (25.4 mm) OD,
0.68 in. (17.27 mm) Height

MH114-3A
Multipurpose Magnet,
Pull Strength: 50 lbs / 23 kg,
1.4 in. (35.56 mm) OD,
0.75 in. (19.05 mm) Height

MH114-3T
Multipurpose Magnet,
Pull Strength: 50 lbs / 23 kg,
1.39 in. (35.31 mm) OD,
0.85 in. (21.59 mm) Height

MH115-2A
Multipurpose Magnet,1.85 in. (46.99 mm) OD,
1.08 in. (27.43 mm) Height

ACCELEROMETER QUICK DISCONNECTS:

CTC's quick disconnects are ideally suited for triaxial sensor use. The permanently mounted stud creates a consistent mounting location for portable routes. The receptacle features a triaxial locating notch and ¼ turn engagement onto the stud, ensuring the sensor is oriented in the same position for every reading.

MH107-1A
Quick Disconnect Receptacle 1/4-28 Tapped Sensor Mounting Hole

MH107-1B
Quick Disconnect Stud

MH107-2B
Quick Disconnect Stud with Through-Hole Mounting, with 1/4-28 Socket Head Screw Cap

MOUNTING PADS / MAGNET TARGETS:

MH101-1B
Mounting Disk, 1 in. (25.4 mm) Diameter, 1/4-28 Integral Mounting Stud

MH130-1A
Mounting Disk, 1 in. (25.4 mm) Diameter, 1/4-28 Blind Tapped Hole

MH130-1T
Mounting Disk, 1 in. (25.4 mm) Diameter, 1/4-28 Blind Tapped Hole, with Triaxial Accelerometer Locating Notch

MH133-1A
Low Profile Magnet Mounting Target, 1 in. (25.4 mm) Diameter, 0.25 in. (6.4 mm) Height

ZERK & SPECIALTY MOUNTING ADAPTERS:

MH134-1A
Zerk Adapter, 1/4-18 NPT Mounting Thread

MH134-4B
Hex Head Zerk Adapter, 1/4-18 NPT Mounting Thread

MH143-1A
Hex Head Mounting Stud for Accelerometers, SPM Compatible

MOTOR FIN MOUNT PROBE PADS:

Easily take measurements from hard-to-reach places. Our fin mount probes are perfect for narrow measurement points in motors, turbines, and other machinery. Fin mounts can be used for portable route measurements or permanently mounted accelerometers.

MH118-1A
0.5 in. x 1.25 in. (12.7 mm x 31.75 mm) Probe Tip

MH118-2A
0.5 in. x 2.0 in. (12.7 mm
x 50.8 mm) Probe Tip

MH118-3A
0.25 in. x 1.75 in. (6.35 mm x 44.45 mm) Probe Tip

MH118-4A
0.25 in. x 1.0 in. (6.35 mm x 25.4 mm) Probe Tip

ACCELEROMETER INSTALLATION TOOL KIT:

MH117 Series
Spot Face and Pilot Hole Drill in One Operation. Options for Taps and Ratcheting Tap Handle Included.

HIGH-SPEED STEEL END MILL TOOLKITS:

Part Number	Thread Size	Pilot Drill Size	Taps & Tap Handle Supplies	Shaft Diameter	End Mill Diameter
MH117-1A	1/4 - 28	#3	No	3/8 in.	1 1/4 in.
MH117-1B	1/4 - 28	#3	*Yes 1/4 - 28	3/8 in.	1 1/4 in.
MH117-2A	10 - 32	5/32 in.	No	3/8 in.	1 in.
MH117-2B	10 - 32	5/32 in.	*Yes 10 - 32	3/8 in.	1 in.
MH117-3A	1/4 - 28	#3	No	3/8 in.	1 in.
MH117-3B	1/4 - 28	#3	*Yes 1/4 - 28	3/8 in.	1 in.
MH117-4A	M6 x 1	5.2 mm	No	9.53 mm	31.75 mm
MH117-4B	M6 x 1	5.2 mm	*Yes M6 x 1	9.53 mm	31.75 mm
MH117-5A	1/4 - 28	#3	No	3/8 in.	5/8 in.
MH117-5B	1/4 - 28	#3	*Yes 1/4 - 28	3/8 in.	5/8 in.
MH117-6A	M8 x 1.25	7.1 mm	No	12.7 mm	31.75 mm
MH117-6B	M8 x 1.25	7.1 mm	*Yes M8 x 1.25	12.7 mm	31.75 mm
MH117-7A	M6 x 1	5.2 mm	No	9.53 mm	25.4 mm
MH117-7B	M6 x 1	5.2 mm	*Yes M6 x 1	9.53 mm	25.4 mm

CARBIDE-TIPPED TOOLKITS FOR INCREASED TOOL LIFE:

Part Number	Thread Size	Pilot Drill Size	Taps & Tap Handle Supplies	Shaft Diameter	End Mill Diameter
MH117-11A	1/4 - 28	#3	No	3/8 in.	1 1/4 in.
MH117-11B	1/4 - 28	#3	*Yes 1/4 - 28	3/8 in.	1 1/4 in.
MH117-13A	1/4 - 28	#3	No	3/8 in.	1 in.
MH117-13B	1/4 - 28	#3	*Yes 1/4 - 28	3/8 in.	1 in.
MH117-15A	1/4 - 28	#3	No	3/8 in.	5/8 in.
MH117-15A	1/4 - 28	#3	*Yes 1/4 - 28	3/8 in.	5/8 in.
