THE CONNECT LINE DIFFERENCE

WIRELESS CONDITION MONITORING ECOSYSTEM FOR UNMATCHED PERFORMANCE

CTC Connect is a line of wireless machine condition monitoring hardware for dynamic vibration signal or overall vibration signal with digital data transmission, designed specifically for the needs of software integrators.

As a hardware-focused predictive maintenance solutions manufacturer, we’re dedicated to engineering products that feature the best specifications at the best price point on the market.

Use these buttons to shop our most popular Connect Line Products, or click here to view all Connect Line product categories:

        COMPETITIVE COMPARISON Popular Competitors

Own your data - no hidden or recurring fees

Green check mark Red X

Up to four years of autonomous operation

Green check mark Red X
User-replaceable sensor battery Green check mark Red X

Single axis, triaxial, and process control wireless sensor designs available

Green check mark Red X

Complimentary ConnectView web app with basic vibration monitoring tools and device management options.

Green check mark Red X
Complimentary API is designed for integration with your existing vibration analysis software or DAQ Green check mark Red X

Expandable ConnectBridge Gateway memory - comes with SD card and has option to add more storage via the micro SD slot

Green check mark Red X

Proprietary Part Creator application takes the guesswork out of selecting compatible hardware to build your complete system.

Green check mark Red X



Why Choose Connect Line Wireless Solutions?

A render of a CTC WS300 Series ConnectSens Wireless condition monitoring sensor with labeled Y axis

Superior Sensor Construction

CTC ConnectSens Wireless Sensors have been engineered by the industry’s leading provider of quality vibration analysis hardware for over 30 years. Our sensors harness the power of MEMS sensing technology, popularly used for wireless sensors due to its low power consumption and small form factor. Our experts have designed these sensors to create the best possible output within a ruggedized enclosure.

All CTC Wireless Sensors are designed to last for years in the field when operating under standard operating conditions (see datasheet for battery life specifics). However, when the battery life is used up, there is no need to buy a new sensor - all ConnectSens Wireless Sensors feature user-replaceable Lithium Thionyl Chloride Primary Battery packs.





Improved Route Efficiency and Analyst Safety

With CTC Connect solutions, you can run your route from your desk or anywhere else, at any time. Stop spending time physically accessing sensors on your machinery for regular readings, and make quick work of monitoring machines in large, spread-out spaces or in multiple buildings with a wireless connection! Our ConnectView Web App offers basic vibration monitoring management tools and device management options. Keep your analysts away from dangerous, hard-to-reach machinery and maximize safety by empowering your team to take remote readings.

A male engineer in a safety vest working on a laptop.





CTC Connect 1 Year Warranty Icon



1 Year Warranty on Materials and Workmanship

All CTC Connect products are backed by a 1 year warranty on materials and workmanship. CTC will repair or replace any CTC Connect products as long as the product was not subjected to misuse, neglect, natural disasters, improper installation, modification, or battery-related failure. Product obsolescence due to technological life cycle advancements is not covered under warranty.

Please view our warranty page for complete Connect Line warranty details.





What is CTC Connect?

CTC Connect is a line of wireless machine condition monitoring hardware for dynamic vibration signal or overall vibration signal with digital data transmission, designed specifically for the needs of software integrators.

The CTC Connect Ecosystem offers you the highest-quality wireless hardware system on the market, with industry-leading sensor line-of-sight range, and is designed for integration with third-party vibration analysis software.

The Connect Line offers secure, accurate, and durable wireless machine condition monitoring solutions including sensors, gateways, and basic web app to track vibration on one axis, three axes, or for process control monitoring. All sensor options come with a built-in temperature output. Our wireless products work together to make your data collection and analysis quick, easy and safe by allowing you to complete your route remotely anytime, anywhere.

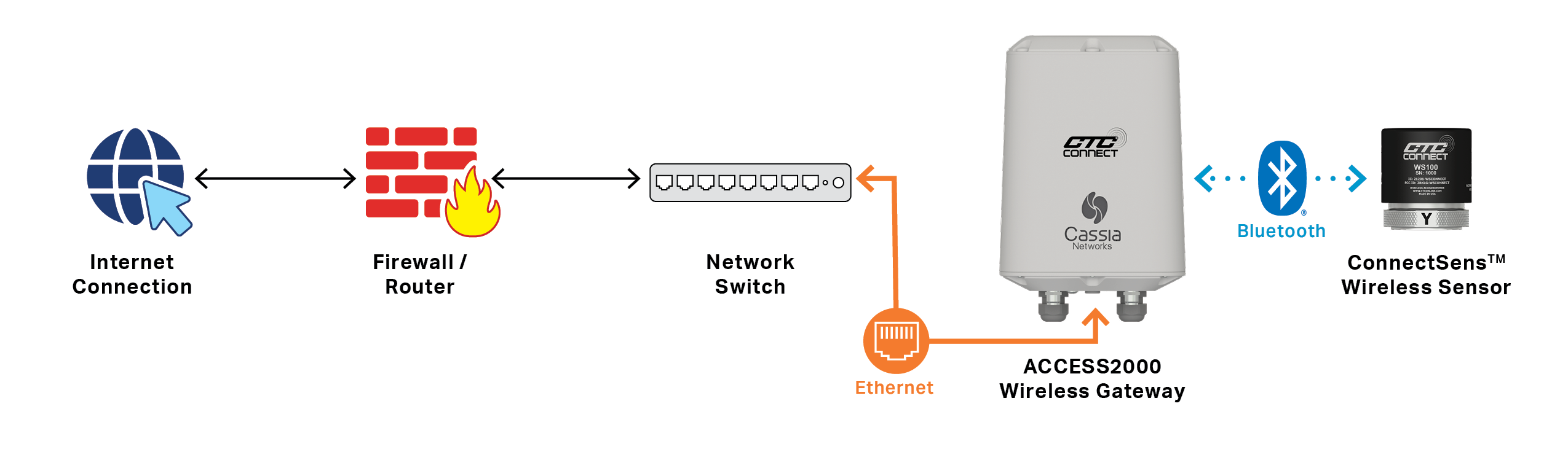

CTC ConnectSens Wireless Sensors communicate via Bluetooth® wireless technology which can be picked up by CTC’s ConnectBridge Wireless Gateway. Gateways are powered and connected to your plant’s network via an ethernet connection, allowing for a continuous stream of data each time a reading is taken from a sensor. Gateways can be used with an unlimited number of any combination of WS100, WS200, and/or WS300 Sensors within range, with 20 concurrent connections.

Our complimentary ConnectView Web App comes preloaded on the ConnectBridge Gateway and provides basic vibration monitoring management tools and device management options like WS200 and WS300 sensor configuration (please note, WS100 is factory configurable only), battery level information, and more. The web app runs off your own network so you can control your data and your security. Data can be stored locally so you always own your data, without hidden or recurring fees! When used with third-party vibration analysis software, our wireless sensors and gateway can be harnessed for advanced data analysis that meets your specific needs.

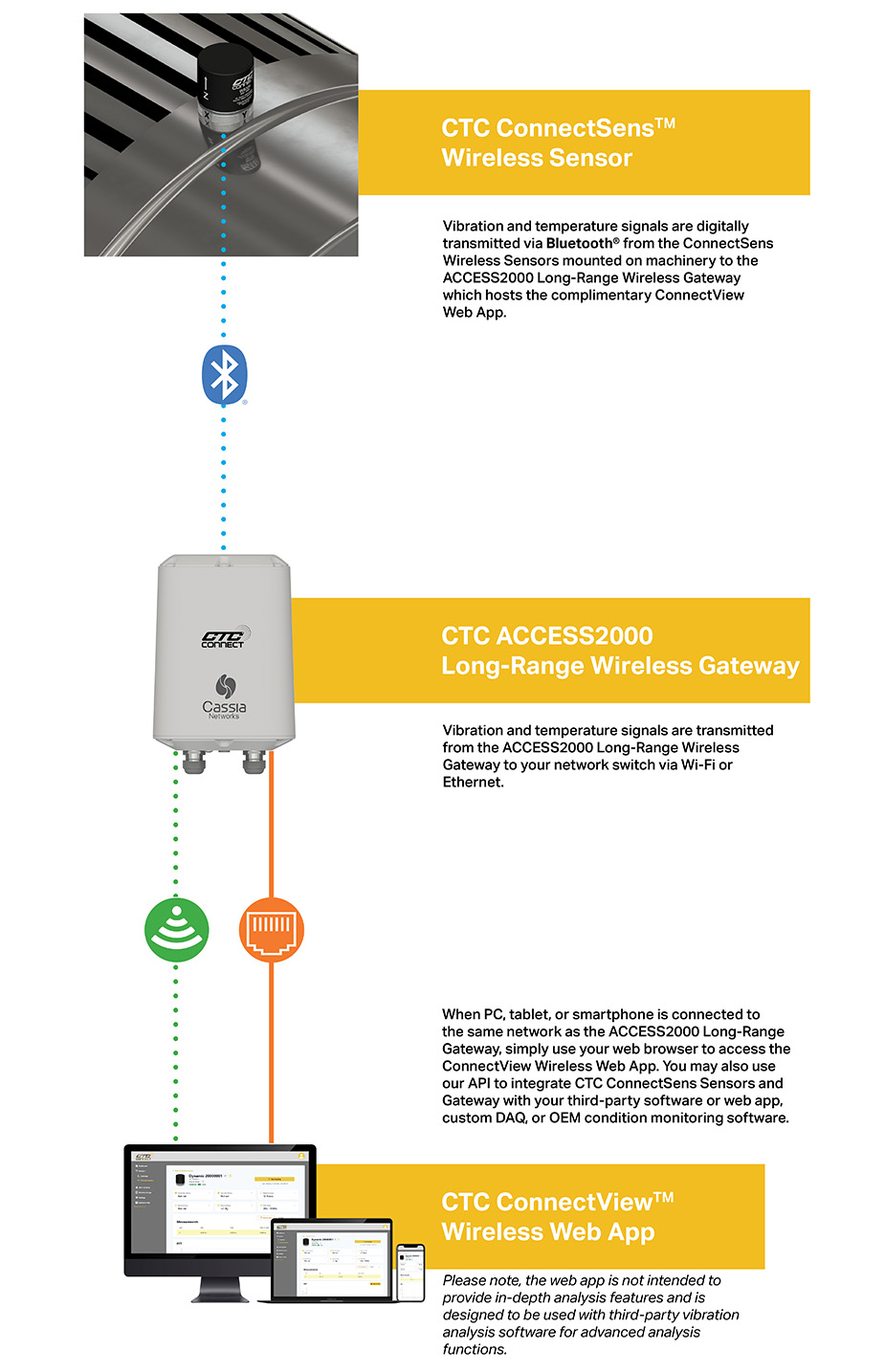

The CTC Connect Environment

A render of a CTC ConnectSens wireless sensor mounted on a motorA render of a CTC ACCESS360 ConnectBridge Gateway connected to a network switch.
A render of a a desktop computer, laptop, and smartphone running the CTC ConnectView Web App.





Ideal Uses for Wireless Condition Monitoring

A photograph of an industrial motor.

Rotating Machinery

Including Fans, Motors, Pumps, Gearboxes, and more

Large orange robotic arms in a factory.

Dangerous and Hard-to-Reach Machinery

Including Large Robotic Arms, Packaging Machines, and more

A photograph of an excavator moving dirt.

Non-Stationary or Portable Equipment

Including Excavators, Cranes, Boon Lifts, and more

A photograph of a large factory interior filled with industrial machinery.

Large Areas with Dispersed Machinery

Including Facilities with Multiple Locations

A crane lifting a large industrial tank.

Short-Term Monitoring

Including Performance Testing and Troubleshooting

A photograph of cardboard boxes being carried on a conveyor belt.

And Many, Many More

CTC Wireless Solutions are the Perfect Fit for Many Industrial Applications





Shop for CTC Connect Line Wireless Solutions

Use the buttons below to shop for Connect Line Wireless hardware:
