Case Study: Wireless Condition Monitoring Deployment
View the printer-friendly pdf version of this case study
OVERVIEW
A large mining operation in Asarco, Arizona partnered with Machinery & Reliability Institute (MRI) to modernize its reliability program using wireless IIoT technology.
The initiative was part of the company's broader condition monitoring and innovation strategy for its critical assets, including:
 |
Improving Equipment Uptime |
 |
Reducing Manual Data Collection |
 |
Enabling Earlier Fault Detection |
SOLUTION
MRI deployed CTC Connect wireless vibration monitoring hardware along the main conveyor system feeding the SAG mills, targeting equipment including:
 |
Gearboxes |
 |
Electric Motors |
 |
Pillow Block Bearings |
HARDWARE DEPLOYED
MRI deployed the following CTC hardware in the mining operation:
WS300 Series ConnectSens Wireless Sensors
- Dynamic triaxial vibration and temperature monitoring
- IP67 rated and well suited for long-term reliability in harsh mining environments
- Enables fast, secure installation on rotating equipment
- Eliminates the need for drilling or permanent modification

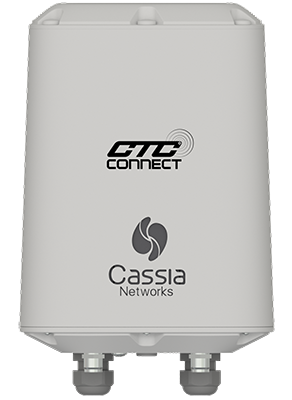

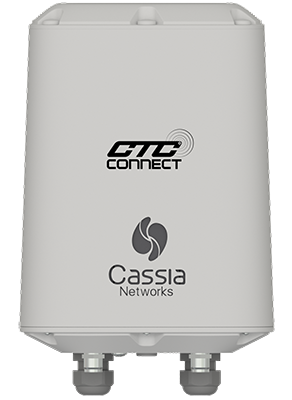

ACCESS2000 Series Long-Range Wireless Gateway
- Centralized data aggregation and transmission
- Scalable architecture for expanding sensor networks

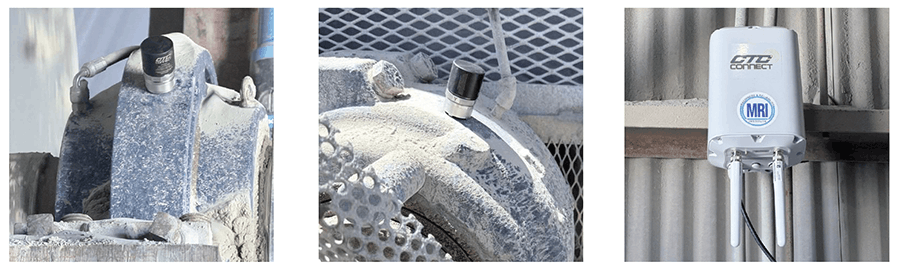

Sensors were strategically installed at critical measurement points along the conveyor system to capture early indicators of:
 |
Bearing Wear |
|
Imbalance |
|
Misalignment |
|
Gear Defects |
The Connect wireless architecture allowed rapid deployment with minimal infrastructure requirements and coverage of previously inaccessible or unsafe locations.
