SKF COMPATIBLE DATA COLLECTOR CONNECTORS

CTC is proud to offer a selection of SKF-compatible data collector connectors designed for use with popular SKF CMVA Series, SKF CMXA Series, SKF Microlog, DLI/DCA, and DLI/DCA-31 data collector models. Available options include single channel acceleration input, single channel tachometer input, and triaxial acceleration input.

Create a SKF Microlog dBX Single Channel Input Cable by configuring our F connector (BNC Plug) with K2C or D2C connectors (2 Pin MIL Style Connectors) on the cabling of your choice:

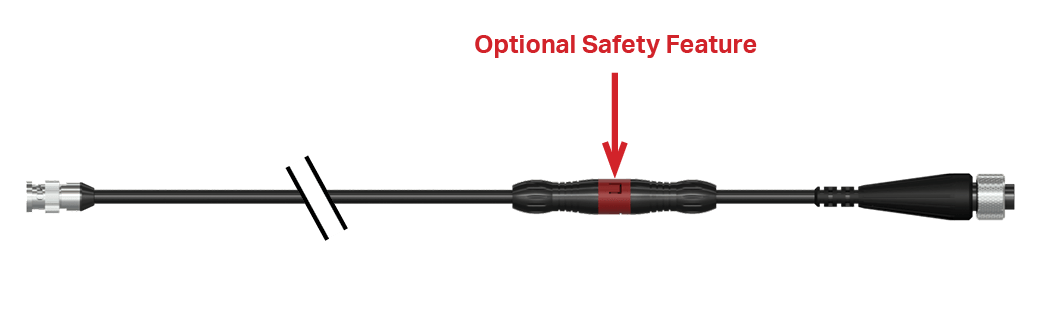

CB103-K2C-XXX-F-SF

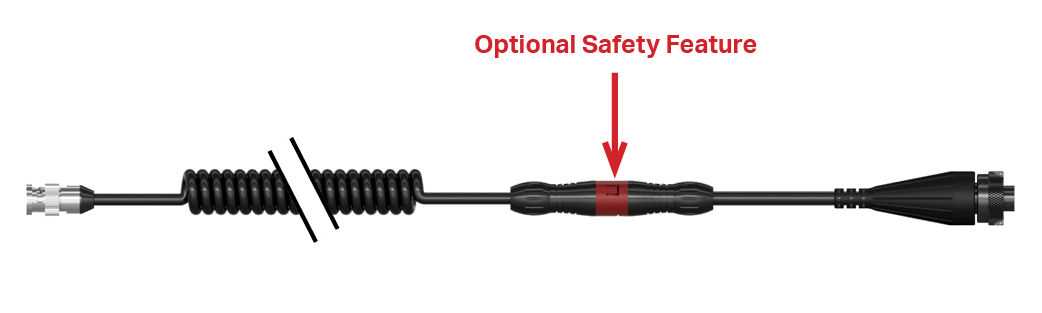

CB104-D2C-XXX-F-SF

(Please note, F connectors must be selected as connector #2 when creating your cordset in the cable wizard)

Build your perfect SKF-compatible data collector connector and cable assembly with our easy-to-use Custom Cable Wizard that takes the guesswork out of choosing compatible hardware for your assembly.

SKF CMVA Series Compatible, 25 Pin D Subminiature Connector, Single Axis Acceleration Input

C66

SKF CMXA and DLI/DCA Series Compatible, 6 Pin Fischer Connector, Single Channel Acceleration Input, Pin 1 Signal/Power (+), Pin 5 Common (-)

C325

SKF DLI/DCA-31 Compatible, 6 Pin Fischer Connector, Triaxial Acceleration Input, Pin 1 (Y Axis), Pin 2 (X Axis), Pin 5 Common (-), Pin 6 (Z Axis)

C364

SKF Microlog Compatible, 7 Pin Fischer Connector, Single Channel Tachometer Input, Pin 4 Common (-), Pin 6 Signal/Power (+)

C484

SKF DLI/DCA-31 Compatible, 6 Pin Fischer Connector, Triaxial Acceleration Input, Pin 1 (X Axis), Pin 2 (Y Axis), Pin 5 Common (-), Pin 6 (Z Axis)

C516

SKF CMXA and DLI/DCA Series Compatible, 6 Socket Fischer® Connector, Wired to mate with C66 (6 Pin Fischer®), Single Channel Acceleration Input

Molded BNC Plug Connector, 250 °F (121 °C) Max Temp
