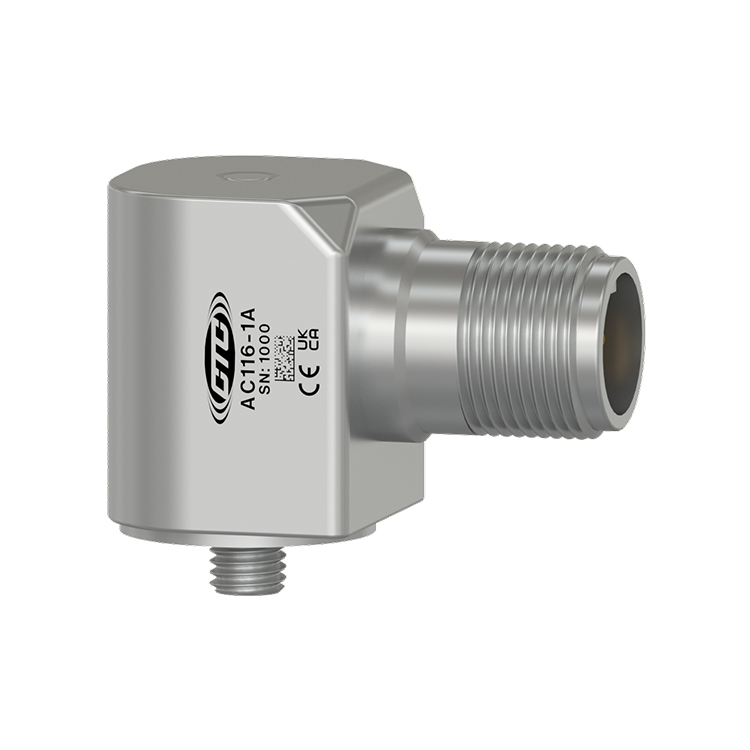

A stainless steel AC116 side exit, magnet mount accelerometer engraved with the CTC Line logo, part number, serial number, and CE and UKCA markings.
AC116 thumbnail image
A side exit CTC AC116 industrial vibration sensor mounted on an MH214-3A mounting magnet.

AC116

MAGNET MOUNT ACCELEROMETER, SIDE EXIT 2 PIN CONNECTOR, 1/4-28 INTEGRAL MOUNTING STUD, 100 MV/G, ±10%
  • 30-900,000 CPM Frequency Response (±3dB)
  • -58 to 250°F (-50 to 121°C) Temperature Range
  • Welded, Hermetic Sealing
  • Standard, Route-Based Sensor
  • Excellent Sensor for Trending

AC116 TYPICAL FREQUENCY RESPONSE

Frequency Response Image
