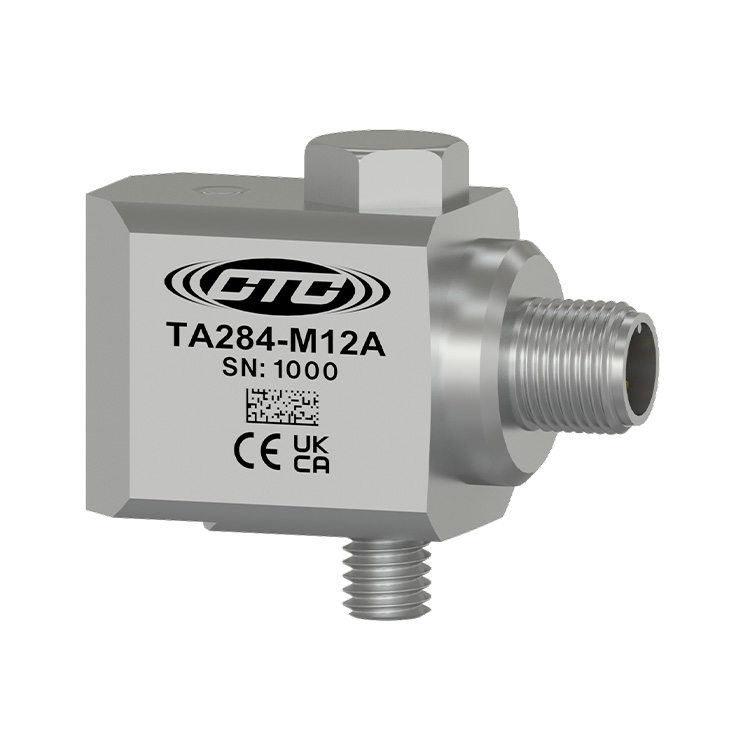

A stainless steel, standard size, M12 side exit TA284-M12A dual output vibration monitoring sensor engraved with the CTC Line logo, part number, serial number, and CE and UKCA certification markings.

TA284-M12A

DUAL OUTPUT SENSOR, TEMPERATURE & ACCELERATION, M8X1.25 CAPTIVE BOLT, SIDE EXIT 4 PIN M12 CONNECTOR, 100 MV/G, 10 MV/°C, ±10%
  • 30-900,000 CPM Frequency Response (±3dB)
  • -40 to 250°F (-40 to 121°C) Temperature Range
  • IP68 Sealing
  • High Performance in a Low Cost Sensor
  • Helps to Detect Bearing Defects and Temperature Changes

TA284-M12A TYPICAL FREQUENCY RESPONSE

Frequency Response Image
