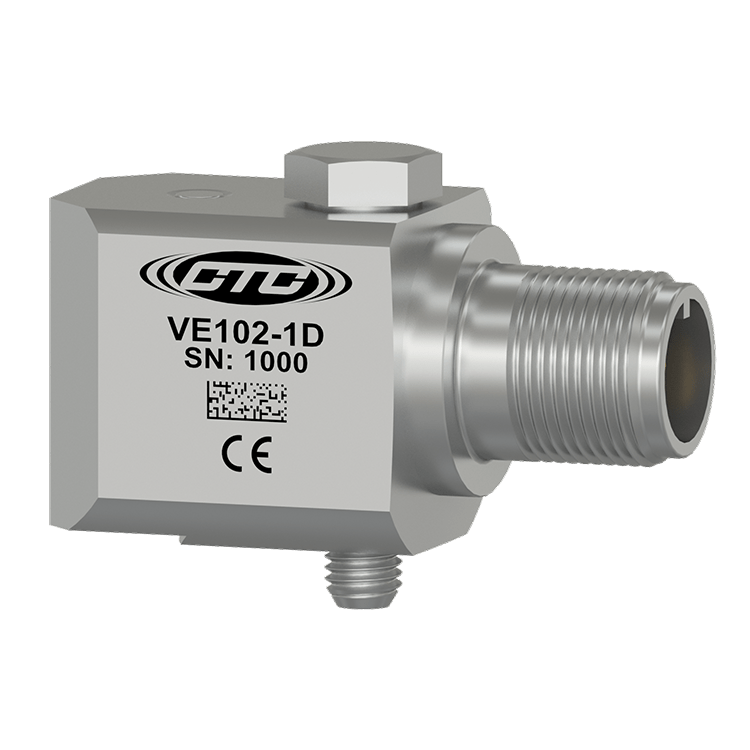

A stainless steel, standard size, side exit VE102 piezo velocity vibration sensor, engraved with the CTC Line logo, part number, serial number, and CE and UKCA certification markings.

VE102

PIEZO VELOCITY SENSOR, SIDE EXIT 2 PIN CONNECTOR, 100 MV/IN/SEC, ±10%
  • 90-420,000 CPM Frequency Response (±3dB)
  • -58 to 250°F (-50 to 121°C) Temperature Range
  • Welded, Hermetic Sealing
  • 100 mV/in/sec (4 mV/mm/sec) Sensitivity
  • 1,5 - 7000 Hz (90 - 420,000 CPM) Frequency Response

VE102 TYPICAL FREQUENCY RESPONSE

Frequency Response Image
