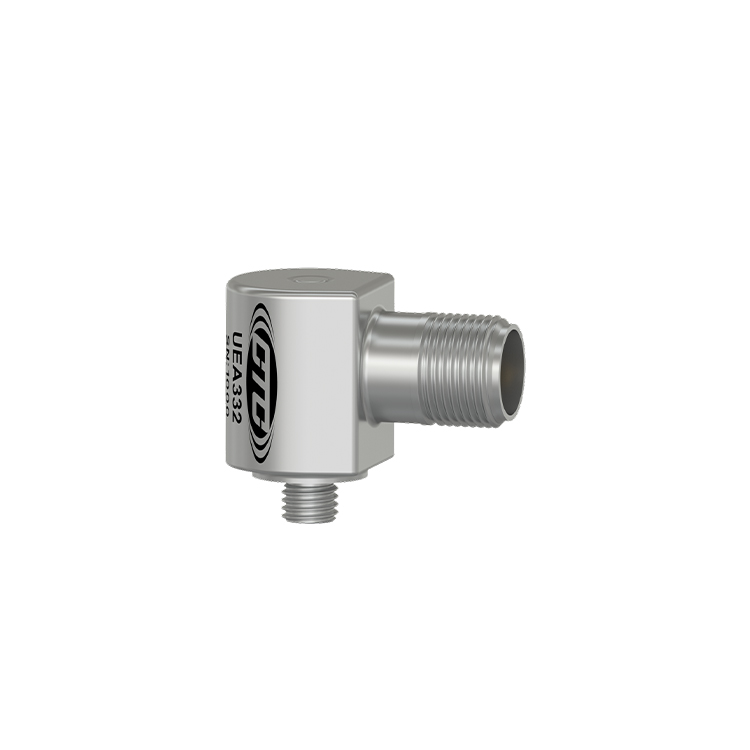

A stainless steel, mini size, side exit UEA332 ultrasound sensor engraved with the CTC Line logo, part number, serial number, and CE and UKCA certification markings.

UEA332

DYNAMIC VIBRATION IEPE ULTRASOUND SENSOR, 1/4-28 MOUNTING, SIDE EXIT 2 PIN MINI-MIL CONNECTOR, 100 MV/G, ±10%
  • 60-1,020,000 CPM Frequency Response (±3dB)
  • -58 to 250°F (-50 to 121°C) Temperature Range
  • Welded, Hermetic Sealing
  • High Frequency Ultrasound Accelerometer
  • High Amplitude Resonance Peak for Stress Wave Measurement Techniques

UEA332 TYPICAL FREQUENCY RESPONSE

Frequency Response Image
