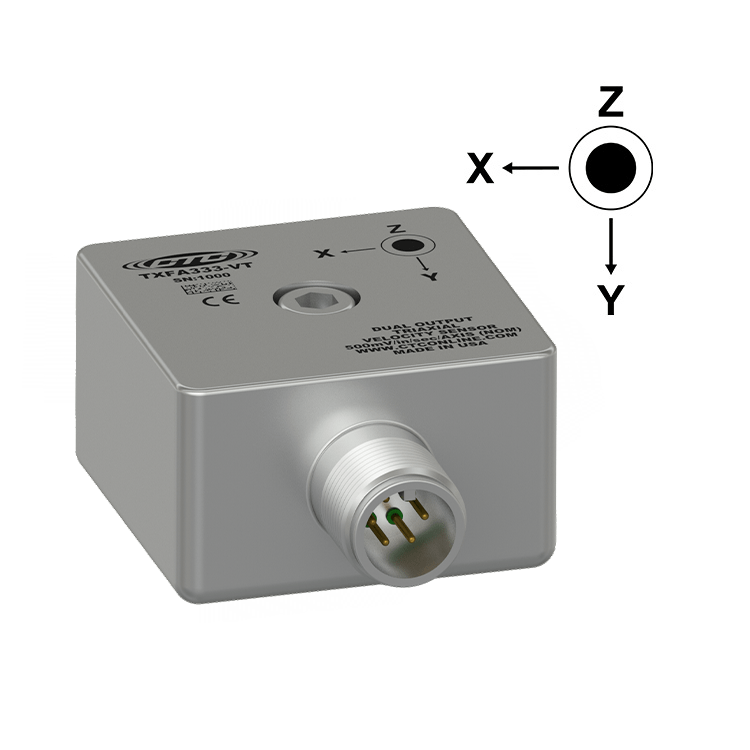

TXFA333-VT

LOW COST, LOW FREQUENCY & DUAL OUTPUT, PIEZO VELOCITY & TEMPERATURE TRIAXIAL SENSOR, SIDE EXIT 6 PIN CONNECTOR, 500 MV/IN/SEC, 10 MV/°C, ±15%
  • 120 to 180,000 CPM Frequency Response (±3dB)
  • -58 to 250 °F (-50 to 121 °C) Temperature Range
  • Welded, Hermetic Sealing
  • 500 mV/in/sec (20 mV/mm/sec) Sensitivity
  • Phase conforms to cartesian coordinate system (right hand rule)

TXFA333-VT TYPICAL FREQUENCY RESPONSE

Frequency Response Image
