PAB110 Series
SINGLE-AXIS PHASE BOX, FIBERGLASS ENCLOSURE, NEMA 4X (IP66) RATED, SENSOR INPUT OPTIONS: 4 TO 12 SINGLE OUTPUT SENSORS
- Two switched outputs to BNC Jacks make it easy to verify phase across multiple measurement points
- Accepts up to 12 single output sensor inputs for a maximum of 12 channels of measurement
- -58 to 180 °F (-50 to 82 °C) Temperature Range
PAB110 Series: Fiberglass Single-Axis Phase Box

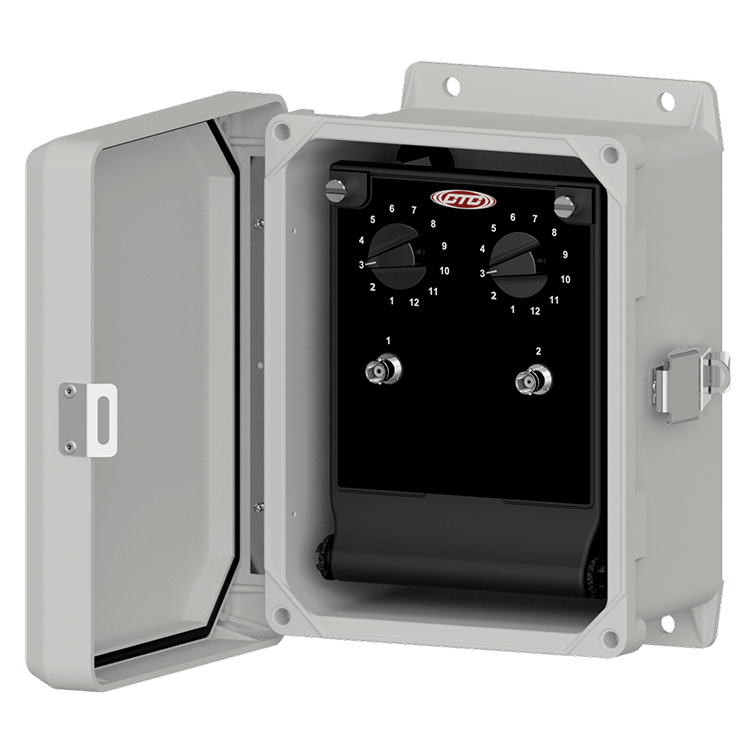

The PAB110 standard size, premium fiberglass switch box is used to streamline phase analysis with a compact test interface that consolidates wiring from up to 12 sensors into a single enclosure. Two switched outputs to BNC Jacks make it easy to verify phase across multiple measurement points without disconnecting sensors or modifying system wiring. PAB Series enclosures are designed to have field input cabling installed behind the board. A flip-down panel allows the user to wire connections on location. Input wiring from each sensor is connected to the outputs via spring cage or screw terminal blocks. Each terminal block includes inputs for positive, negative and shield. The shield drain wire is earth grounded via a ground stud that is mounted to the side of the fiberglass enclosure.
