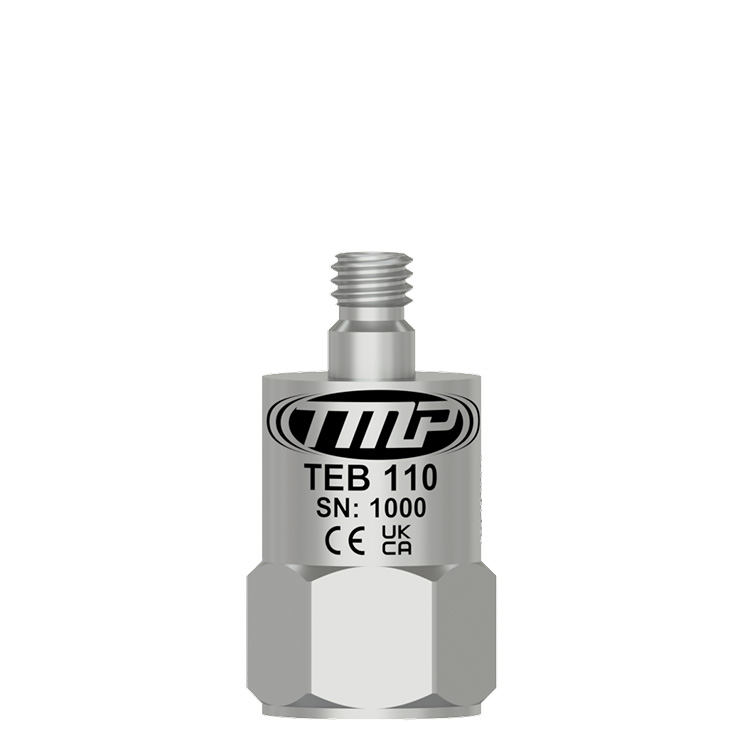

A small, top exit TMP Line vibration analysis sensor engraved with the TEB110 part number and other identifying product information.

TEB110

TEST AND MEASUREMENT ACCELEROMETER, TOP EXIT 10-32 COAXIAL CONNECTOR, 10-32 MOUNTING, 100 MV/G, ±10%
  • 30-1,800,000 CPM Frequency Response (±3dB)
  • -58 to 250°F (-50 to 121°C) Temperature Range
  • Welded, Hermetic Sealing

TEB110 TYPICAL FREQUENCY RESPONSE

Frequency Response Image
