HAZARDOUS AREA APPROVED CABLING
CTC makes it easy to find Intrinsically Safe or Class 1, Division 2 approved cabling that’s compatible with your specific accelerometer and application.
How to Find a Compatible Hazardous-Area Approved Cable

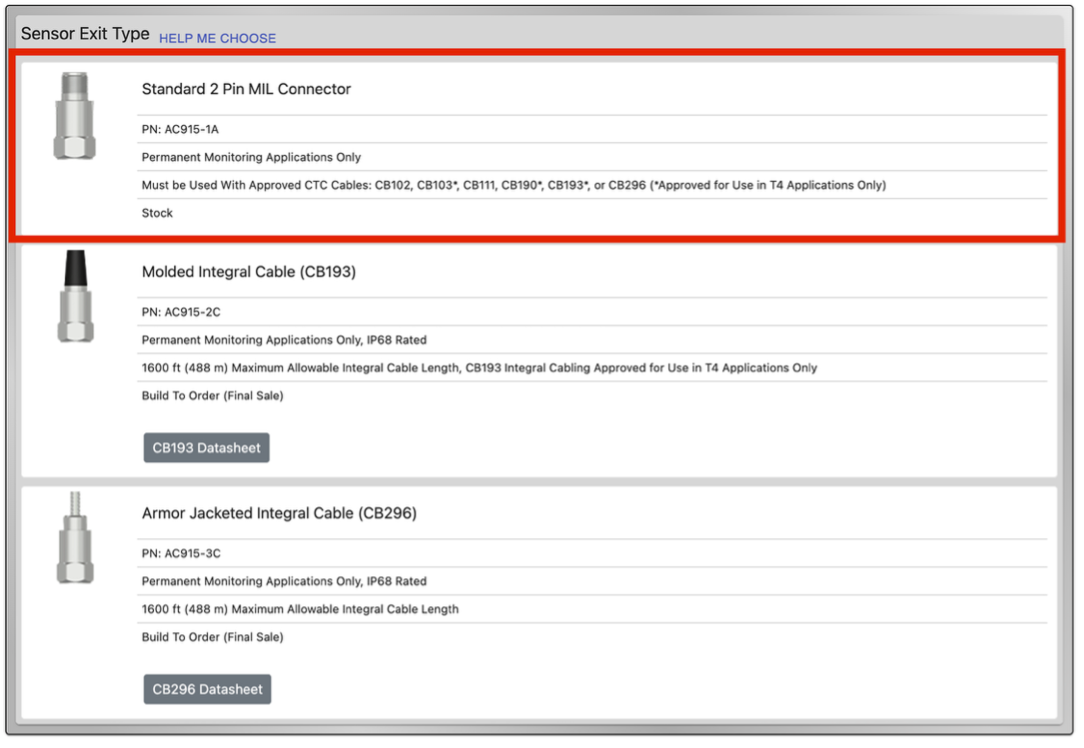

- Navigate to the desired hazardous-area approved accelerometer product page, scroll to the bottom, and select the connector exit option in the part creator:

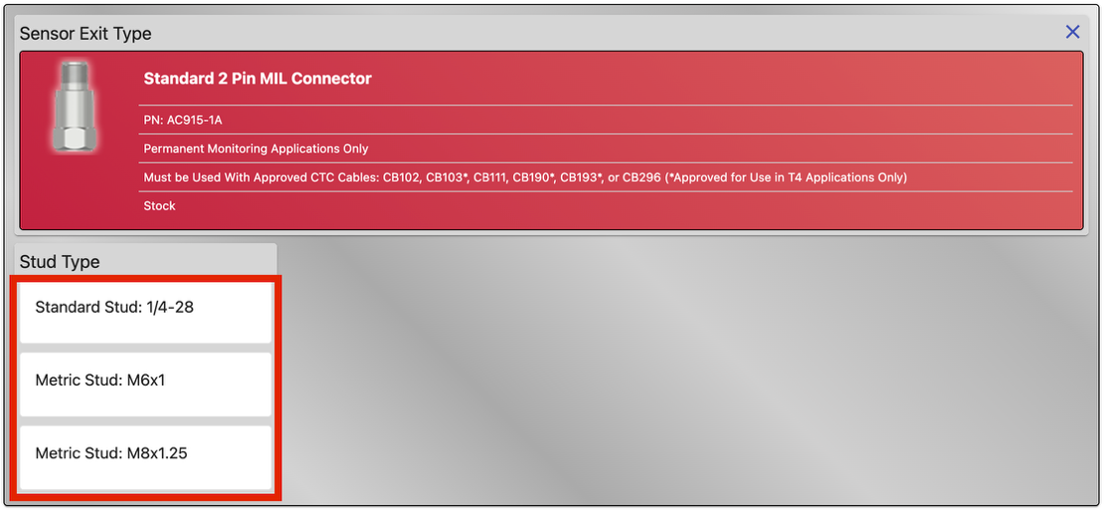

2. Select a desired stud type from the options provided:

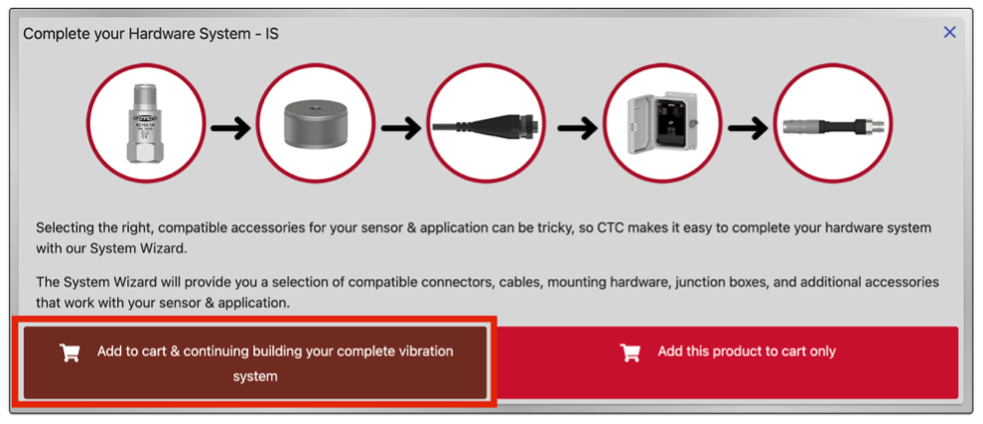

- Click “add to cart & continue building your complete vibration system” button on left:
- On the following screen, the compatible hazardous-area approved cables are listed at the top of the part creator above the compatible connector options.

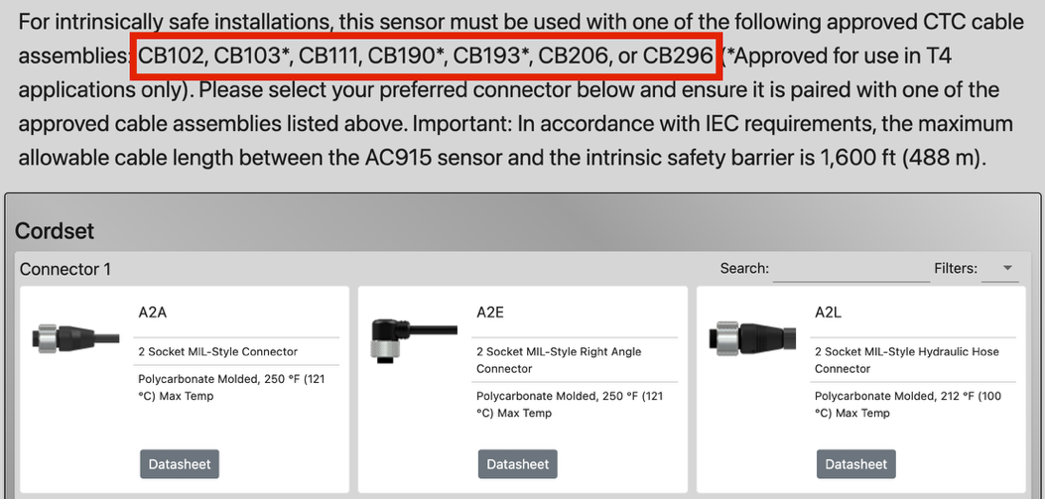

Intrinsically Safe Accelerometer Example:

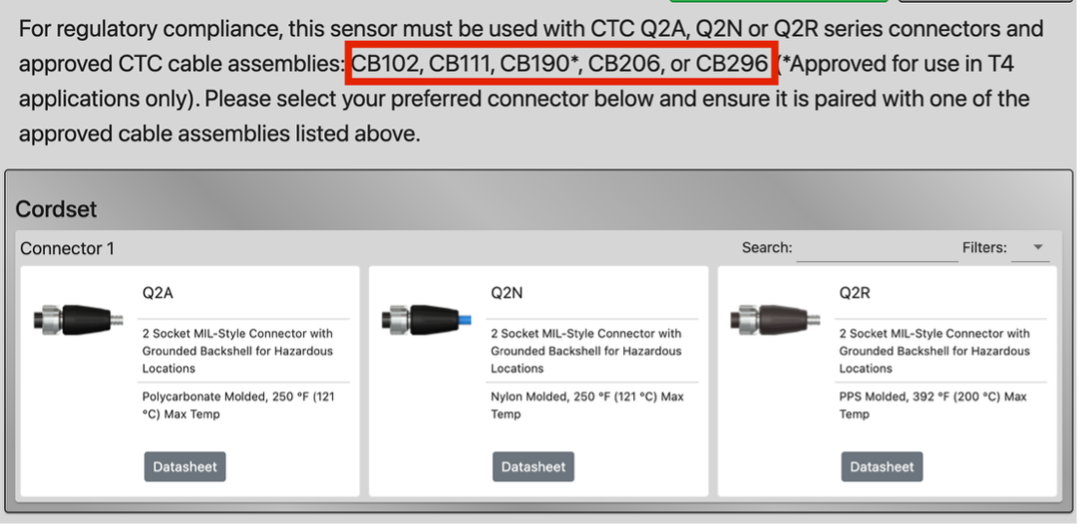

Class 1, Division 2 Accelerometer Example:

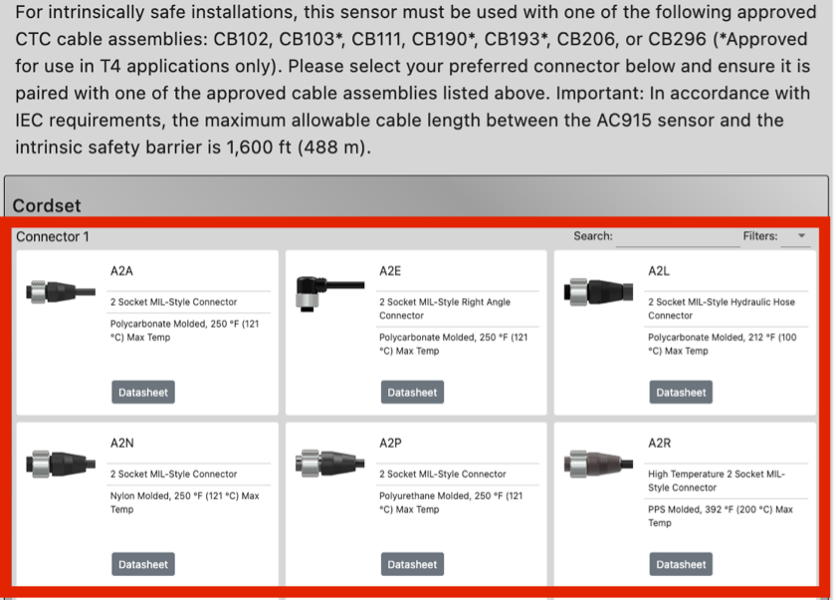

5. Select your desired connector from the provided options:

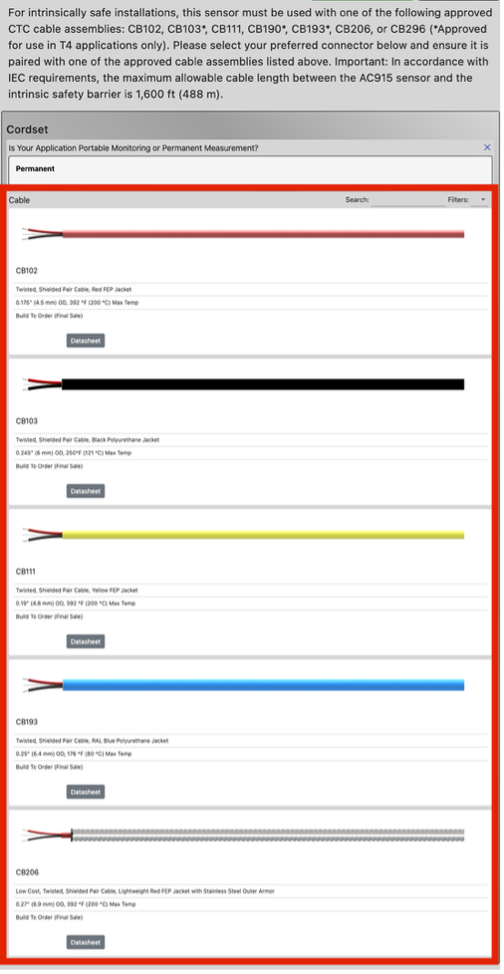

6. Select one of the compatible hazardous-area approved cable assemblies listed above:
- Then continue to build the rest of your cordset and desired system as prompted by the part creator.
