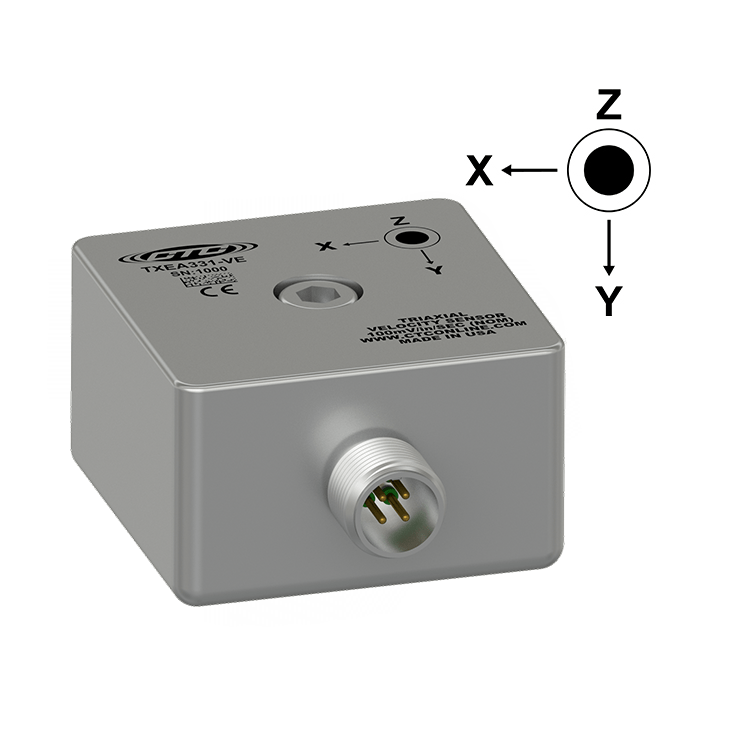

TXEA331-VE

PREMIUM PIEZO VELOCITY TRIAXIAL SENSOR, SIDE EXIT 4 PIN MINI-MIL CONNECTOR, 100 MV/IN/SEC, ±5%
  • 60 to 270,000 CPM Frequency Response (±3dB)
  • -58 to 250°F (-50 to 121°C) Temperature Range
  • Welded, Hermetic Sealing
  • 100 mV/in/sec (4 mV/mm/sec) Sensitivity
  • Phase conforms to cartesian coordinate system (right hand rule)

TXEA331-VE TYPICAL FREQUENCY RESPONSE

Frequency Response Image
