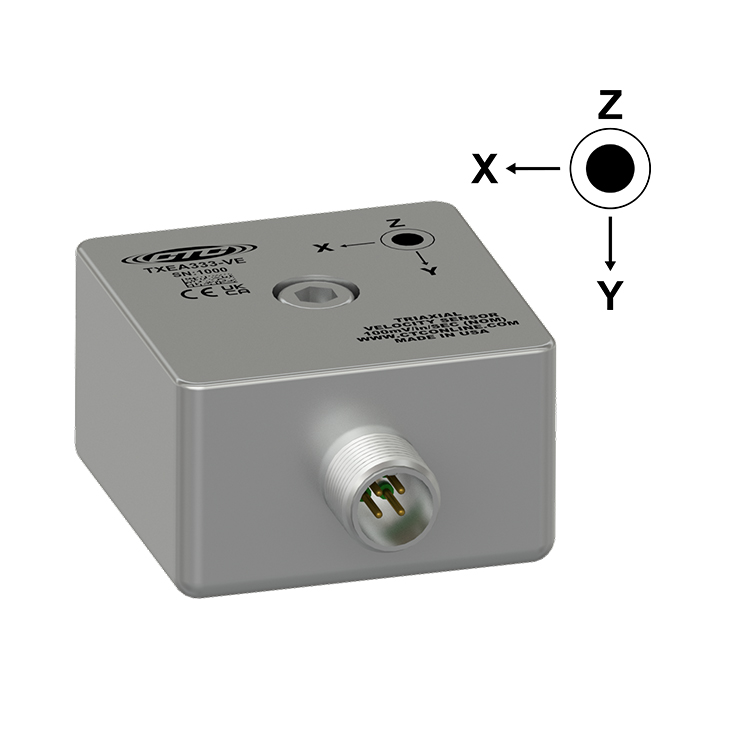

A standard size, stainless steel, side exit TXEA333-VE velocity triaxial sensor engraved with Z, X, and Y axes labels, CTC line logo, and other product information.

TXEA333-VE

LOW COST, PIEZO VELOCITY TRIAXIAL SENSOR, SIDE EXIT 4 PIN CONNECTOR, 100 MV/IN/SEC, ±15%
  • 60 to 270,000 CPM Frequency Response (±3dB)
  • -58 to 250°F (-50 to 121°C) Temperature Range
  • Welded, Hermetic Sealing
  • Collect 3 Channels of Data Simultaneously for Faster Data Collection
  • Follows Cartesian Coordinate Phase Configuration (Right Hand Rule)

TXEA333-VE TYPICAL FREQUENCY RESPONSE

Frequency Response Image
